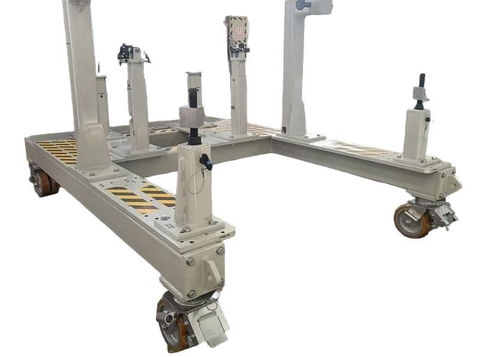

Steel engine cradle 856A1122G17

turbine

Summary
Certified ground support stand for turbine and compressor blade inspection on CFM56-5B/-7B and LEAP-1A/1B engines. Designed for MRO workflows and non-destructive testing (NDT) processes in commercial turbofan maintenance.

Overview
856A1122G17 is a certified ground support fixture engineered to AS9100D and RTCA DO-160G standards. It provides precise, repeatable positioning of turbine and compressor blades during overhaul and routine safety checks, and supports ultrasonic and fluorescent penetrant NDT methods to assist FAA/EASA post-maintenance airworthiness verification.

Construction and features
High-strength alloy steel construction with anti-corrosion plating. Adjustable clamping jaws with ±0.02mm alignment accuracy, 360° rotating and tilting work platform, integrated mounting points for ultrasonic and fluorescent penetrant NDT tools, ergonomic height adjustment (0.7–1.6 m), and non-marring padding to protect blade surfaces. Weight: 270 kg; Dimensions (L×W×H): 1750 × 1150 × 980 mm.

Keywords

• Junxun

Category
Ground Support Equipment (GSE)

Technical specifications

• Model identifier: 856A1122G17
• Application: Turbine and compressor blade inspection for CFM56-5B/-7B and LEAP-1A/1B engines
• Standards: AS9100D; RTCA DO-160G; FAA/EASA compliant
• Material: High-strength alloy steel with anti-corrosion plating
• Clamping: Adjustable clamping jaws, ±0.02mm alignment accuracy
• Platform: 360° rotating and tilting work platform
• Mounting: Integrated mounting points for ultrasonic and fluorescent penetrant NDT tools
• Height (ergonomic): 0.7–1.6 m (adjustable)
• Padding: Non-marring padding to protect blade surfaces
• Weight: 270 kg
• Dimensions (L×W×H): 1750 × 1150 × 980 mm
• Use case: Overhaul, routine safety checks, NDT workflows in turbofan MRO
