Aircraft engine cradle JX-D71STA00004G05turbine
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Type of engine
- turbine
- Weight
Min.: 2,660 kg
(5,864.3 lb)Max.: 2,660 kg
(5,864.3 lb)
Description
Overview

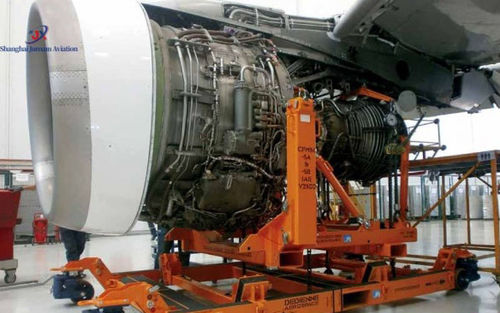

The JX-D71STA00004G05 is a cradle assembly specifically designed for CFM56-5A/5B and V2500 engines, providing support during engine transport and maintenance operations. Part of the DAE 3101 series, this component enables safe handling, transport and installation of engines commonly fitted to the Airbus A320 family. The cradle secures engine positioning during installation or removal, particularly for wing-mounted engines, and features front and rear towing capability to facilitate movement during ground handling and MRO operations.
Category
Ground Support Equipment (GSE)
Details
Size (cm): 430 x 240 x 170
Weight (kg): 2660
Characteristics / Technical specifications
The JX-D71STA00004G05 is a cradle assembly specifically designed for CFM56-5A/5B and V2500 engines, providing support during engine transport and maintenance operations. Part of the DAE 3101 series, this component enables safe handling, transport and installation of engines commonly fitted to the Airbus A320 family. The cradle secures engine positioning during installation or removal, particularly for wing-mounted engines, and features front and rear towing capability to facilitate movement during ground handling and MRO operations.
Category
Ground Support Equipment (GSE)
Details
Size (cm): 430 x 240 x 170
Weight (kg): 2660
Characteristics / Technical specifications
- Model: JX-D71STA00004G05
- Series: DAE 3101 series
- Compatible engines: CFM56-5A, CFM56-5B, V2500
- Typical aircraft application: Airbus A320 family
- Primary function: Cradle assembly for engine transport, installation and maintenance support
- Support features: Secure engine support for installation/removal of wing-mounted engines
- Handling features: Front and rear towing capability for ground transport and positioning
- Benefits: Reduces risk of damage to the engine and adjacent aircraft components; facilitates maintenance operations and reduces turnaround time
- Physical dimensions: 430 x 240 x 170 cm
- Weight: 2660 kg
- Category: Ground Support Equipment (GSE)
- Brand / Manufacturer: Junxun
