Engine maintenance tool 856A1391G02

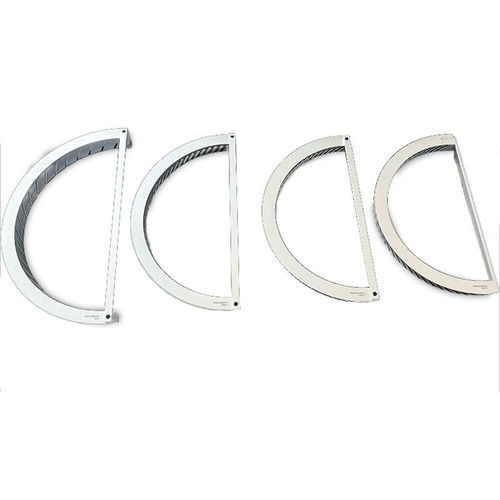

The 856A1391G02 VSV Support Tool is a highly specialized, precision-engineered maintenance fixture designed exclusively for the CFM56 series engines. It is utilized by aero-engine technicians to facilitate the accurate installation, alignment, and removal of the Variable Stator Vane (VSV) support brackets located within the High-Pressure Compressor (HPC) section. Precision & Safety in Engine Maintenance The VSV system is critical for optimizing core airflow and preventing engine stalls during varying power settings. The actuation mechanisms and support brackets operate under extreme precision; even minor misalignments during assembly can cause mechanical binding, excessive wear on bushings, or asymmetric vane angles. The 856A1391G02 tool ensures perfect geometric alignment of the VSV supports. By providing a secure and exact fitment, it eliminates the risk of component distortion, ensuring that the entire actuation ring moves smoothly and the engine operates safely at peak thermodynamic efficiency. Key Features & Benefits • Dedicated CFM56 Compatibility: Custom-machined to match the exact dimensional tolerances of the CFM56 compressor casing and VSV support architecture. • Prevents Mechanical Binding: Guarantees precise bracket alignment, reducing friction in the VSV linkage and preventing costly FADEC fault codes. • Aerospace-Grade Durability: Constructed from high-strength alloys to withstand the rigorous demands of engine shop tear-downs and rebuilds. • Enhances Shop Efficiency: Streamlines complex compressor rigging and maintenance procedures, significantly reducing turnaround time (TAT) during engine overhauls.
