Lifting system for the aerospace industry 856A1019G04

for aircraft

Summary

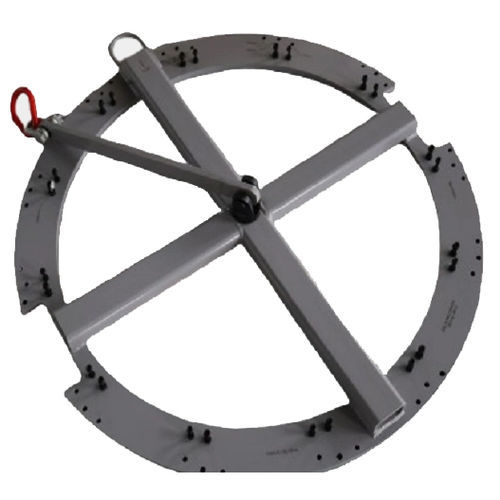

Fixture, vertical lift - combustion case

Details
The 856A1019G04 vertical lift fixture is a dedicated maintenance tool used to support and handle the aft combustion case assembly during CFM56 engine maintenance and overhaul. Engineered for controlled vertical lifting, the fixture enables safe positioning of the combustion case during disassembly and reassembly operations. Classified under ATA 72 engine maintenance tooling.

Key Points

• Vertical lift fixture — designed for controlled lifting and handling of the combustion case assembly.
• Aft combustion case application — specifically for aft combustion case assemblies.
• CFM56 engine tooling — referenced within CFM56 maintenance inventories.
• Assembly & disassembly support — facilitates accurate positioning during engine procedures.
• Professional MRO tooling — suitable for engine overhaul shops, airline maintenance facilities and MRO providers.

Application

• CFM56 engine combustion case maintenance
• Handling of aft combustion case assemblies
• Vertical lifting and positioning of the combustion case
• Engine disassembly and reassembly operations
• CFM56 overhaul and MRO activities
• Aircraft engine maintenance tooling systems

Features / Technical specifications

• Part Number: 856A1019G04
• Model Name: Fixture, Vertical Lift – Combustion Case Assembly Aft
• Size (cm): 98 × 98 × 30
• Weight (kg): 67
• Brand: Junxun
• Category: Aviation maintenance tools (ATA 72 engine maintenance)
• Availability: Not in stock
• Delivery time: To be confirmed
