Electric ground power unit RPGPU

for aircraftfor aircraft maintenancefor airport

Description

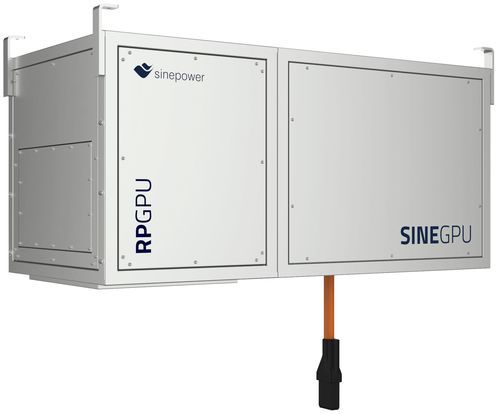

The SINE RPGPU is a compact, double-conversion ground power unit (GPU) designed for aviation use. It delivers isolated, stable 200 V three-phase 400 Hz AC power to aircraft, with high efficiency and low input harmonic distortion suitable for civil and military ground support operations.

Cable info

• Main input power from GPU to aircraft: 90 kVA
• Max. output current: 260 A
• Input power for cable drum operation: 50/60 Hz, 400/220 V
• Maximum input current for cable drum: 16 A

Input

• 4-quadrant operation for improved dynamic response and safer NBPT operation
• Low input harmonics (<1.5% THDi) to meet strict grid and aircraft requirements at any load

Technology

• High-frequency IGBT rectifier and inverter with double-conversion topology to ensure sinusoidal input current (THDi <1.5%) and unit power factor (PF = 1)
• Integrated inverter output transformer providing galvanic isolation of the load
• No Break Power Transfer (NBPT) compatible for seamless transfer scenarios
• Designed to minimize impact on upstream power sources; suitable for military-grade deployments

Options

• Supports AC output configurations provided total load does not exceed unit rating
• Available AC variants: 30 kVA to 90 kVA (400 Hz units)

Output

• 200 V, 3-phase, 400 Hz output to aircraft via single output
• Can be fed from standard mains 380–415 V, 3-phase, 50 Hz or other compatible supplies

Efficiency

• Up to 95% efficiency

Standards
AVIATION

• ISO 6858 Aircraft ground support electric supplies
• SAE ARP 5015 Ground equipment 400 Hz ground power performance requirement

MILITARY

• MIL-STD-704 Aircraft electric power characteristics

EMC

• EN 61000-6-4 EMC - Generic emission standard
• EN 61000-6-2 EMC - Generic immunity standard

SAFETY

• IEC 62477-1 Safety requirements for power electronic converter systems and equipment
• IEC 60529 Degrees of protection provided by enclosures (IP)

Technical characteristics / specifications

• Product name: SINE RPGPU (Ground Power Unit)
• Nominal rating (this page): 90 kVA — 400 Hz configuration
• Output: 200 V, 3-phase, 400 Hz (single aircraft output)
• Compatible mains: 380–415 V, 3-phase, 50 Hz
• Available AC options: 30 kVA – 90 kVA (400 Hz)
• Maximum output current (90 kVA): 260 A
• Main input power to aircraft (90 kVA): 90 kVA
• Input for cable drum operation: 50/60 Hz, 400/220 V
• Maximum input current for cable drum: 16 A
• Technology: High-frequency IGBT rectifier and inverter; double-conversion topology; integrated inverter output transformer for galvanic isolation
• Input performance: THDi < 1.5%; power factor = 1
• Compatibility: No Break Power Transfer (NBPT)
• Efficiency: up to 95%
• Standards compliance: ISO 6858, SAE ARP 5015, MIL-STD-704, EN 61000-6-4, EN 61000-6-2, IEC 62477-1, IEC 60529
