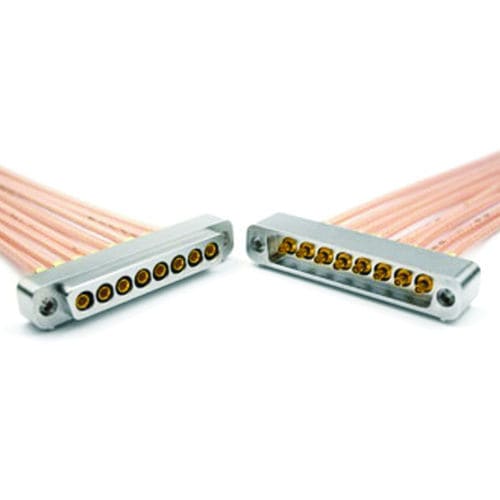

RF connector MDCXfor aircraftcoaxialmicro-D
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Applications
- for aircraft
- Format
- coaxial, micro-D
- Shape
- low-profile
- Connection type
- spring-loaded pressure, locking
- Other characteristics
- compact
Description
MDCX, multipin coax connectors, offer low VSWR of 1.25:1 (typ) up to 10 GHz (max mated pair), maximum overall diameter of 0.125" fitted into low-profile micro-D housing, with constant 50 Ohm airline impedance. MDCX coaxial contacts are compact in size allowing multiple high density connections in a Micro-D style shell for applications where space and weight savings are important. No cumbersome spring mounts are required. These connectors are also available with locking post mechanisms or blindmate hardware attachment.
Features & Benefits
VSWR of 1.25:1 (typ) up to 10 GHz (max mated pair)
Maximum overall diameter of 0.125" fitted into low-profile Micro-D housing
Constant 50 Ohm airline impedance
