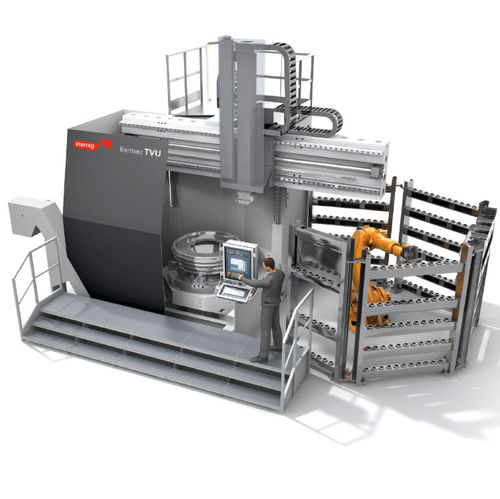

Vertical turning machine Berthiez TVU 1400/80
CNCmanual4-axis

vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
Add to favorites
Compare this product


Characteristics

Spindle orientation
vertical
Control type
CNC, manual
Number of axes
4-axis
Other characteristics
for the aerospace industry
Spindle speed

6,000 rpm (37,699.112 rad.min-1)

Diameter

1,250 mm, 1,400 mm (49.21 in)

Description

The vertical lathes of the TVU product line of Berthiez are especially suited for machining engine and turbine components, which are primarily used in the aerospace industry as well as for alternative and classical power generation. The TVU vertical lathes are characterized by a complete cast design, high-precision static and dynamic positioning as well as long-lasting reliability. Advantages of the TVU vertical turning lathes are, completely cast iron construction, high static and dynamic axis stability, high accuracies and long term reliability. For higher flexibility the machine can be equipped with several pallet change systems and adaptable milling heads. The optional Y-axis table traverse will permit the turning, milling and grinding of complex components in a single clamping. RAM integrated grinding and milling spindle With the ability to integrate a grinding and milling spindle, it becomes possible to build a high-performance machining center out a grinding machine. With the spindle power up to 45 kW and 345 Nm can be obtained at 6000 rpm. RAM cross section of 250x250mm, tool holders CAPTO / HSK / KM / Berthiez tool holder for turning tools and CAPTO / HSK / KM / ISO for milling tools. High pressure coolant pack Using high pressure coolant can result in significant increases in productivity in the processing of difficult machine materials such as Titanium can be obtained. Berthiez offers solutions up to 400 bar. Various pallet changer systems The pallet changing systems range from palletizing RTS of a double changer through to multi-pallet system with manual or automatic clamping.
