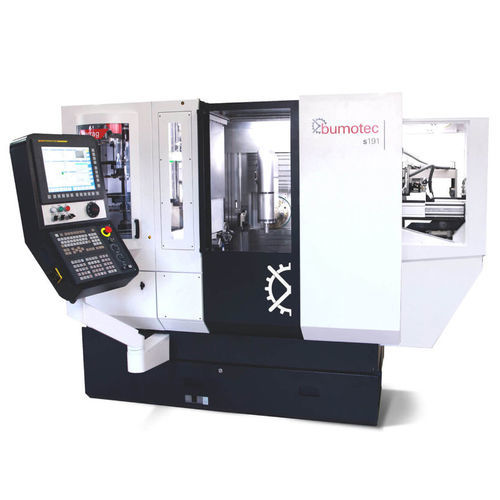

7-axis or more machining center Bumotec s191H

horizontaluniversalCNC

The machines of the s191H series are suitable for turning, milling and grinding of individual parts or from bar (diameters: 32, 50 and 65 mm) in a single setting. The series has an extremely versatile modular structure, which means that it is possible to build any kind of machines from standardised modules for various machining tasks – including a machining center with seven axes and three spindles. The CNC Bumotec s191H Linear turnmill center is suitable for complete machining of very complex six sided parts. Linear motors ensure maximum precision and reliable repeatability in the machining of parts. Thanks to the combination of the rapid linear drive (acceleration: 1.1 g; speed: 50 m/min) with a high-resolution Renishaw measurement system (resolution: 1/100 µm) and a stabilised cooling circuit for all heat-generating elements, the s191H Linear achieves excellent productivity. A unique feature is the high-speed spindle (150,000 rpm), on which it is possible not only to turn and mill ceramic parts but, using different grinding discs (measuring 0.5 to 80 mm), they can also be dry-ground. Features: Linear driven motors and direct-driven rotation axis Extensive features with a maximum of 7 axes and 3 spindles Unique spindle with high torque Universal bar machining (bar passage: 32, 50 or 65 mm) Large tool changer for 90 HSK40 tools High thermal stability Automatic in/out loading unit for blanks High finish quality Multiple configurations available Simple clamping concept Large choice of clamping systems From Bar to finished part, in one single production cycle Multiple processes (turning / milling / grinding / drilling / gear hobbing / …)
