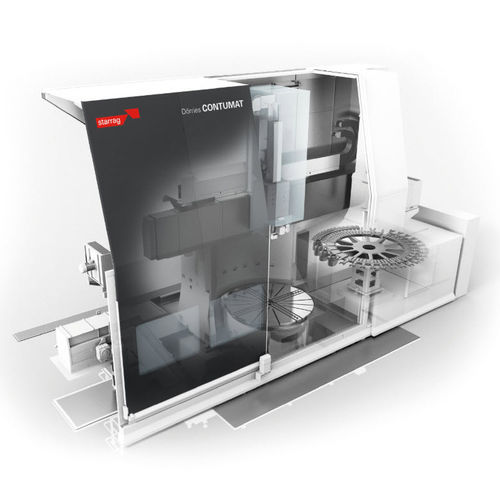

Vertical turning machine Dörries CONTUMAT VCE 1400
CNC3-axisfor aeronautics

vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
vertical turning machine
Add to favorites
Compare this product


Characteristics

Spindle orientation
vertical
Control type
CNC
Number of axes
3-axis
Other characteristics
for aeronautics
Spindle speed

Min.: 450 rpm
(2,827.433 rad.min-1)

Max.: 630 rpm
(3,958.407 rad.min-1)

Diameter

1,400 mm
(55.12 in)

Description

The compact single column vertical lathe (swing diameters of 1,400 to 2,800 mm) is appropriate not only for turning, but, with additional units, can also be used for drilling, milling and grinding. It means that it is possible, in a single clamping, to carry out a full machining operation on the CONTUMAT VCE and not simply turning. The rigid cast construction on this lathe ensures low vibration and accurate cutting; hydrostatic guide rails damp vibrations even further. The technical design and numerous fitting options mean that Dörries is able to configure an individual machine to every customer. Cast iron design of main components The cast iron single column design of the main components leads to a vibration damping design. All main machine groups are calculated and optimised using the Finite-Element Methode (FEM) regarding stiffness and cross sections. Main drive / C-axis drive The main drive is powered by one or two electrically preloaded drive units with asynchronous motors. The power is max. 2 x 60 kW. The version with two motors (master-slave principle) permits exact positioning and feed motion of the machine tables in a numerically-controlled C-axis for boring and milling, as well as the highest dynamics in tuning. Support The cast iron ram design consists a closed hydrostatic guide system. Ram section of 250 x 250 mm or 300 x 250 mm are available. Z-stroke options of 1100 mm, 1500 mm and 1750 mm are possible. Crossrail The crossrail offers hydrostatic guiding in the X-axis. The crossrails are adjusted by means of a lifting unit. The crossrails are hydrostatically clamped and positioned by index bolts at intervals of 100 mm.
