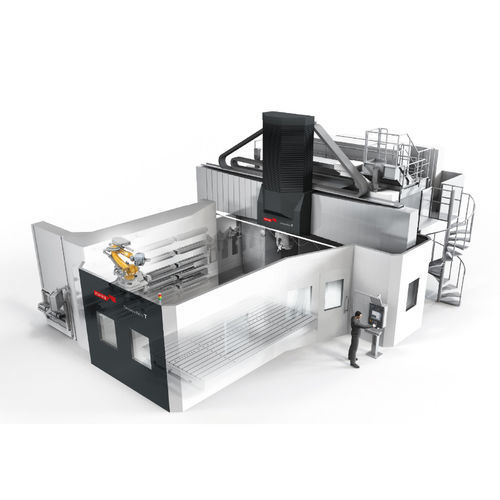

6-axis machining center T
verticalfor aeronauticsgantry

6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
6-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
6-axis
Spindle orientation
vertical
Other characteristics
for aeronautics, gantry
Rotational speed

Max.: 6,000 rpm
(37,699 rad.min-1)

Min.: 2,500 rpm
(15,708 rad.min-1)

X travel

Max.: 12,000 mm
(472 in)

Min.: 3,000 mm
(118 in)

Y travel

Max.: 6,500 mm
(256 in)

Min.: 3,000 mm
(118 in)

Z travel

Max.: 4,000 mm
(157 in)

Min.: 1,500 mm
(59 in)

Description

With the T/TF series, Droop+Rein offers gantry machining centres for heavy-duty machining in many sectors: Applications range from tool and mould making, aircraft component manufacturing and engine manufacturing to general mechanical engineering. Based on the robust, highly accurate and powerful basic machines, the T/TF series offers an extensive system of innovative automation and expansion stages that enable the machines to be adapted flexibly to each machining task. The optional automatically changing fork-type milling head makes complex and demanding machining possible. Through extensive application know-how, a variety of different milling heads are available -including vertical milling heads, angle milling heads, and fork-type milling heads for positional or simultaneously controlled applications. Innovative Solutions Control options The series offers the Heidenhain iTNC 530 or Siemens Sinumerik 840 D control. Master-/Slave drive Double pinion, electronically preloaded by two feed drives High stiffness High position accuracy Easy maintenance by reduced numbers of drive elements. Thermosymmetrical RAM design The thermosymmetrical RAM design with hydrostatic bearings ensures that all heat sources are thermosymmetrical arranged to the RAM slide cross section. This offers highest precision at power of up to 100 kW (S1).
