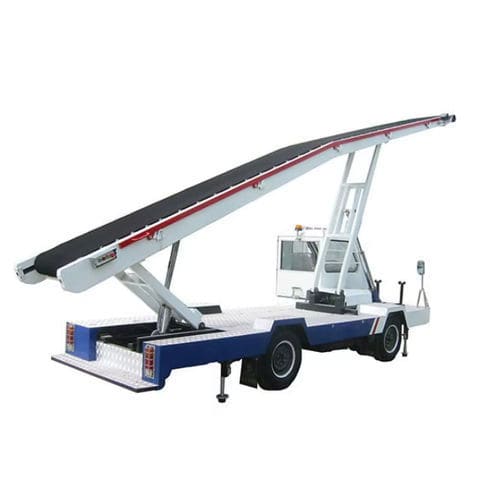

Self-propelled belt loader CM-AGE-CBL

for airport

Introduction
Airport baggage belt conveyor loaders ensure organized, efficient transfer of baggage and cargo from terminal areas to aircraft holds, supporting on-time departures and streamlined ground handling operations.

Key features

• Belt conveyor system: continuous belt moves baggage and cargo from terminal to aircraft cargo hold.
• Adjustable height: conveyor height adjusts to match aircraft cargo door for seamless loading.
• Loading capacity: available in multiple sizes and capacities to suit different aircraft types and operational needs.

Product Description
Name: Airport Baggage Belt Conveyor Loader
Gearbox: Automatic
Maximum power: 35.4/2500 KW/r/min
Wheelbase: 2900 mm
The overall size: 8190 x 2130 x 2020 mm
Minimum turn radius: <8 meters
Minimum ground clearance: 135 mm
Conveyor arm size (L x W): 8000 x 880 mm
Transmission bandwidth: 700 mm
Transfer speed: 15 to 20 meter/min
Transmission height (front): 1200 ~ 4200 mm
Transmission height (rear): 520 ~ 1300 mm
Maximum transfer angle: 30.2 degrees
Maximum average transfer load: 135 kg/m
Maximum single delivering load: 400 kg

Application
Suitable for aircraft with cargo door heights between 1200 mm and 4200 mm.

Packing
Packed in a 40'HQ container; shipping quantity: 1 piece per 40'HQ.

Technical specifications

• Model: CM-AGE-CBL
• Brand: CHEERSMETAL
• Overall size: 8190 x 2130 x 2020 mm
• Wheelbase: 2900 mm
• Minimum ground clearance: 135 mm
• Conveyor arm size (L x W): 8000 x 880 mm
• Transmission bandwidth: 700 mm
• Transfer speed: 15–20 m/min
• Transmission height (front): 1200–4200 mm
• Transmission height (rear): 520–1300 mm
• Maximum transfer angle: 30.2°
• Maximum average transfer load: 135 kg/m
• Maximum single delivering load: 400 kg
• Maximum power: 35.4/2500 KW/r/min
