Manual towbar A310

for aircraftA310for airport

Product overview
The CHEERSMETAL A310 aircraft towbar is designed for apron towing operations and complies with current standards: SAE AS1614, SAE ARP1915E-2021, ISO 8267-1 and BS ISO 9667.

Key specifications

• Model: A310
• Brand: CHEERSMETAL
• Applicable aircraft model: TBM-A310
• Adjustable height range: 200–600 mm
• Total length: 3865 mm
• Total width: 750 mm
• Weight: 275 kg
• Main tube diameter: Φ159 mm
• Tow head ring opening diameter: Φ80 mm

Lifting mechanism
The lifting assembly consists of a gearbox, lead screw and screw tube. Manual rotation of the hand crank extends or retracts the screw tube rod to adjust the towbar height relative to ground level for precise coupling to the aircraft tow point.

Compatibility & dimensions
Designed for TBM-A310 series aircraft. Key external dimensions and mass are provided for compatibility checks with ground support equipment and storage on the apron: total length 3865 mm, total width 750 mm, weight 275 kg.

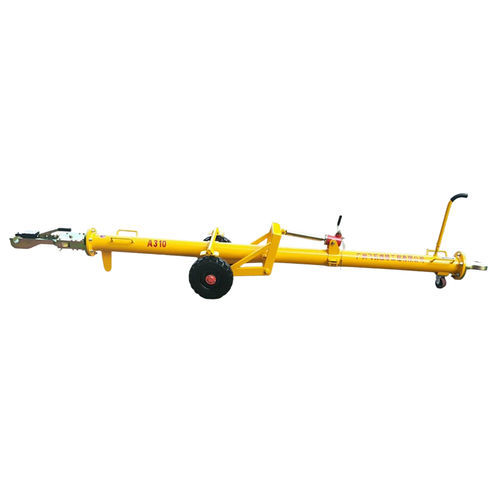

Product picture

Why choose us

• Supply of quality products at competitive prices
• High-standard production processes
• Advanced manufacturing equipment
• Strict quality control system
• Dedicated R&D team
• Professional sales and after-sales support
• Extensive export experience worldwide
• One-stop solution service

Technical specifications

• Model: A310
• Brand: CHEERSMETAL
• Applicable Aircraft Model: TBM-A310
• Adjustable Height Range: 200–600 mm
• Total Length: 3865 mm
• Total Width: 750 mm
• Weight: 275 kg
• Main Tube Diameter: Φ159 mm
• Tow Head Ring Opening Diameter: Φ80 mm
• Lifting Mechanism: Gearbox, lead screw and screw tube assembly with manual hand crank
