Aircraft jack CM-QJD02 series

hydraulicsingle-axis

Product overview
The CM-QJD02 series aircraft hydraulic pallet jack is a precision lifting device engineered for aircraft maintenance and ground support operations. Models CM-QJD02-20KN and CM-QJD02-30KN offer rated loads of 20 kN and 30 kN respectively, with an adjustable working range suitable for many commercial aircraft maintenance tasks.

Applications

• Leveling and supporting aircraft during maintenance;
• Landing gear retraction and extension testing;
• Wheel, brake and undercarriage replacement;
• Calibration and controlled lifting for ground support procedures.

Advantages

• No lateral stress applied to the jack or the aircraft;
• Short maintenance cycles and reduced downtime to lower operating costs;
• Available in manual and pneumatic versions; simple operation and fast crew training.

Specifications

• Model: CM-QJD02-20KN, CM-QJD02-30KN
• Rated load: 20 kN / 30 kN
• Minimum height: ≥400 mm
• Maximum height: ≤1200 mm
• Hydraulic stroke: ≥750 mm
• Mechanical stroke: ≥50 mm
• Oil tank capacity: 2.1 L
• Operation modes: manual, pneumatic; fully automatic systems with powered steering available
• Brand: CHEERSMETAL

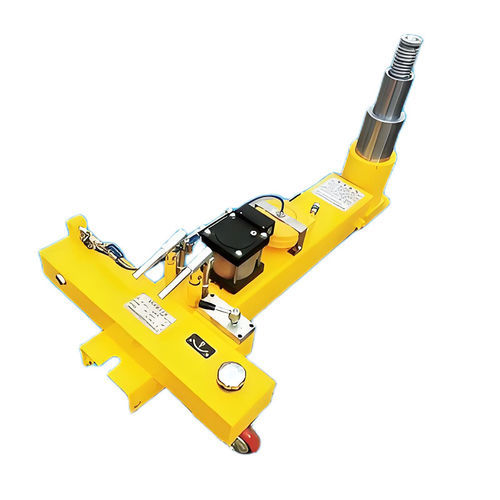

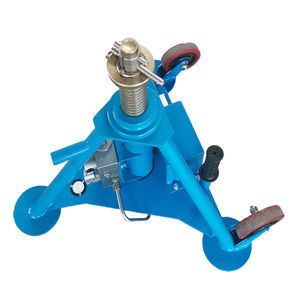

Product images
Images show the jack and typical application views (refer to photos provided on the page).

Why choose us

• Competitive pricing and industry-standard production processes;
• Advanced manufacturing equipment and strict quality control;
• Dedicated R&D team and professional sales support;
• Experienced exporter providing one-step solution services.

Technical specifications

• Model series: CM-QJD02 series (examples: CM-QJD02-20KN, CM-QJD02-30KN)
• Intended use: commercial aircraft ground support and maintenance
