Aircraft jack CM-QJD02-20KN

hydraulicmechanical

Product Description

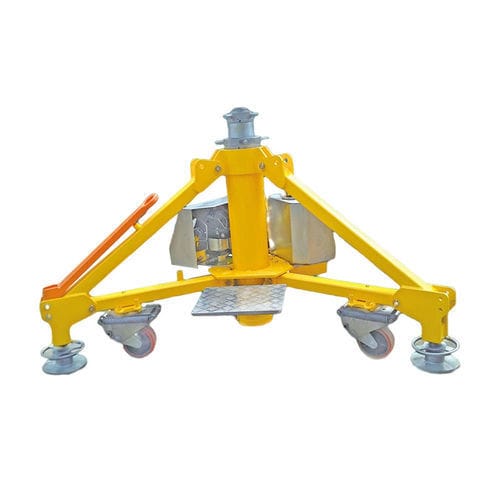

Jacks are used to support, raise and lower aircraft during maintenance tasks such as leveling, testing landing gear retraction and extension, wheel replacement and calibration. This aircraft top jack (model CM-QJD02) is a high-precision lifting device designed for aerospace maintenance. The manufacturer supplies manual and pneumatic jacks ranging from 2 to 100 tons, and fully automatic jack systems with powered steering suitable for commercial aircraft.

Advantages

• No lateral stress on the jack or the aircraft
• Short maintenance cycles and minimal downtime reduce operating costs
• Ergonomic design for easy operation and rapid training

Specification
Model | CM-QJD02-20KN | CM-QJD02-30KN
Rated load | 20kN | 30kN
Minimum height | ≥400mm | ≥400mm
Maximum height | ≤1200mm | ≤1200mm
Hydraulic stroke | ≥750mm | ≥750mm
Mechanical stroke | ≥50mm | ≥50mm
Oil tank capacity | 2.1L | 2.1L

Why Choose Us
We supply industry-grade equipment with controlled production processes, factory testing, a dedicated R&D team and global export experience. We provide technical support and one-stop logistics to support aircraft maintenance operations.

Technical features

• Model: CM-QJD02-20KN (also available CM-QJD02-30KN)
• Rated load: 20kN (CM-QJD02-20KN) / 30kN (CM-QJD02-30KN)
• Minimum height: ≥400mm
• Maximum height: ≤1200mm
• Hydraulic stroke: ≥750mm
• Mechanical stroke: ≥50mm
• Oil tank capacity: 2.1L
