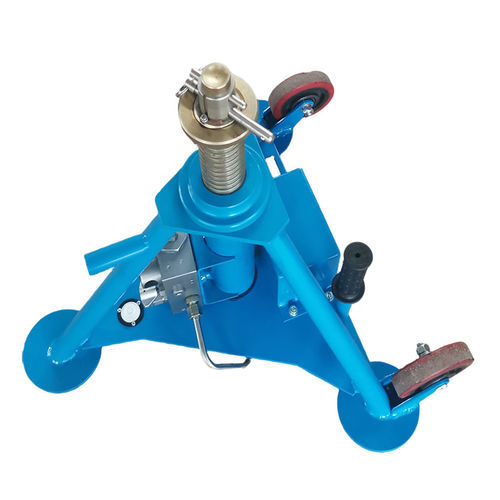

Aircraft jack CM-QJD02 serieshydraulictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic
- Type
- tripod
- Lifting capacity
Min.: 2,039 kg
(4,495.23 lb)Max.: 3,059 kg
(6,743.94 lb)- Lifting height
Min.: 40 cm
(16 in)Max.: 120 cm
(47 in)
Description
Product Description
This aircraft hydraulic pallet jack is a precision lifting device designed for maintenance operations including leveling, landing gear retraction/extension testing, wheel replacement and calibration. The jack features a stable triangular base with large-diameter pads to maximize stability during lifting.
Specification
Model: CM-QJD02-20KN — CM-QJD02-30KN
Rated load: 20 kN — 30 kN
Minimum height: ≥400 mm
Maximum height: ≤1200 mm
Hydraulic stroke: ≥750 mm
Mechanical stroke: ≥50 mm
Oil tank capacity: 2.1 L
Product Picture
Multiple photographs show the jack from different angles, including detailed views of the precision-machined lifting head, large base pads and side wheels for handling.
Why Choose Us
Technical Specifications
This aircraft hydraulic pallet jack is a precision lifting device designed for maintenance operations including leveling, landing gear retraction/extension testing, wheel replacement and calibration. The jack features a stable triangular base with large-diameter pads to maximize stability during lifting.
Specification
Model: CM-QJD02-20KN — CM-QJD02-30KN
Rated load: 20 kN — 30 kN
Minimum height: ≥400 mm
Maximum height: ≤1200 mm
Hydraulic stroke: ≥750 mm
Mechanical stroke: ≥50 mm
Oil tank capacity: 2.1 L
Product Picture
Multiple photographs show the jack from different angles, including detailed views of the precision-machined lifting head, large base pads and side wheels for handling.
Why Choose Us
- Competitive pricing and reliable product supply
- High-standard production processes
- Advanced manufacturing equipment
- Strict quality control system
- Dedicated R&D team
- Professional sales and after-sales support
- Extensive export experience
- One-stop solution service
Technical Specifications
- Series: CM-QJD02 series
- Available models: CM-QJD02-20KN, CM-QJD02-30KN
- Rated load: 20 kN (CM-QJD02-20KN), 30 kN (CM-QJD02-30KN)
- Minimum height: ≥400 mm
- Maximum height: ≤1200 mm
- Hydraulic stroke: ≥750 mm
- Mechanical stroke: ≥50 mm
- Oil tank capacity: 2.1 L
- Structure: stable triangular base with large-diameter pads
- Lifting head: precision-machined
- Mobility: side wheels for maneuvering around maintenance areas
