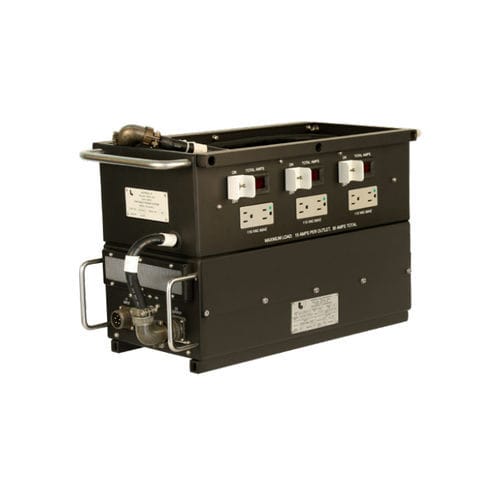

Aircraft maintenance frequency converter PS-95-448-2

The PS-95 medevac portable power system is a self-contained, easily transportable unit used to convert aircraft power into a 3-station, 60Hz power bus to operate electrical equipment and medical evacuation stations aboard military and commercial aircraft. Each of the three stations is equipped with a NEMA 15-5R spark elimination receptacle and independent circuit breaker. INPUT Voltage Range Configuration Frequency Range Power Factor Input Current Distortion (0.99 < 5% at Nominal Input Voltage and Full Rated Load Circuit Breaker, Over/Under Voltage, Loss of Phase, OVERCURRENT □UTPUT Power Voltage Frequency Configuration Power Factor Range Distortion Efficiency Overload Protection 3.5 kVA Continuous 115 VRMS ±1.0% 60 Hz ±1.0% Single Phase 0.75 Lagging to 0.75 Leading 2% THD Maximum 89% Typical at Full Load 125% for 5 Minutes 175% for 10 Seconds Over/Under Voltage, Overload, Short Circuit, Duplex Receptacles Individually Circuit Breaker Protected
