CNC milling machine M7 series

horizontalfor aeronautics

Overview

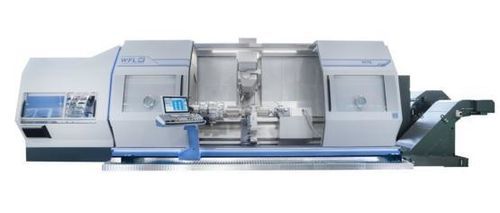

The M70 MILLTURN is a CNC multitasking turning‑milling center built on the modular WFL system. Its machine concept minimises distances between workpiece, tool and guideways while maximising distances between guideway pairs to ensure optimal stability and geometry. The front-loading tool magazine provides compact, stable storage with safe access.

Highlights at a glance

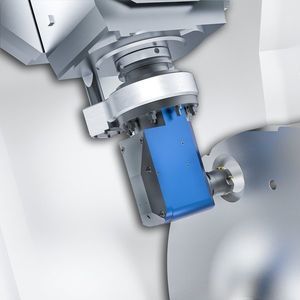

• Modular tool interfaces designed for long-term accuracy and rigidity.
• Standard tool interface engineered for high feed forces.
• Capable of highly productive deep-hole drilling and a range of special machining technologies.
• Prism tool system enables tools exceeding standard tool dimensions.
• Use of solid prism holders and automatic cutting-head change with the WFL system boring bar.
• Two magazine variants (various capacities up to 200 positions).

Technical data (table)
Nominal center distance — mm — M70: 1000 / 2000 / 3000 / 4500 / 6000 / 8000 — M70-G: 1000 / 2000 / 3000 / 4500 / 6000 / 8000
Swing - ø over Top slide — mm — M70: 850 / 850 / 850 / 850 / 820 / 790 — M70-G: 850 / 850 / 850 / 850 / 820 / 790
Max. power, Turning spindle 40% (100%) duty cycle — kW — M70: 56(40) / 80(60) * — M70-G: 56(40) / 80(60) // 60(40) / 90(60) *
Max. torque, Turning spindle 40% (100%) duty cycle — Nm — M70: 3420(2440) / 5860(4500) * — M70-G: 3420(2440) / 5860(4500) // 3000(2000) / 4800(3200) *
Max. spindle speed, Turning spindle — min-1 — M70: 2400 / 1600 * — M70-G: 2400 / 1600 *
Max. power, Milling spindle 40% (100%) duty cycle — kW — M70: 58(45) * — M70-G: 58(45) *
Max. torque, Milling spindle 40% (100%) duty cycle — Nm — M70: 640(500) / 400(310) * — M70-G: 640(500) / 400(310) *
Max. spindle speed, Milling spindle — min-1 — M70: 5000 / 8000 * — M70-G: 5000 / 8000 *
Swiveling angle B - axis — deg — M70: 220 (-110…+110) — M70-G: 220 (-110…+110)
Travel Y - axis — mm — M70: 525 (-225…+300) — M70-G: 525 (-225…+300)
Travel X - axis — mm — M70: 900 (-20…+880) — M70-G: 900 (-20…+880)
Tailstock female taper — Type — M70: MK6 — M70-G: -
Tool magazine storage system — number — M70: 36 / 72 / 108 / 200 * — M70-G: 36 / 72 / 108 / 200 *
Control SIEMENS — Type — M70: SINUMERIK ONE — M70-G: SINUMERIK ONE

Technical specifications

• Available nominal center distances: 1000, 2000, 3000, 4500, 6000, 8000 mm
• Swing over top slide up to 850 mm (depends on center distance)
• Turning spindle power options up to 80 kW (40% / 100% duty-cycle variants)
• Turning spindle torque up to 5860 Nm (duty-cycle dependent)
• Turning spindle max speeds: 2400 / 1600 min-1 (depending on configuration)
• Milling spindle power: 58 kW (40%) / 45 kW (100%) indicated
• Milling spindle torque: up to 640 / 400 Nm (40% / 100%)
• Milling spindle speeds: 5000 / 8000 min-1
• B-axis swivel range: 220° (-110° … +110°)
• Y-axis travel: 525 mm (-225 … +300)
• X-axis travel: 900 mm (-20 … +880)
• Tailstock female taper: MK6 (M70 only)
• Tool magazine capacities: 36 / 72 / 108 / 200 positions
• Standard control: SIEMENS SINUMERIK ONE
