Milling tool holder

boringcuttingfor aeronautics

Overview

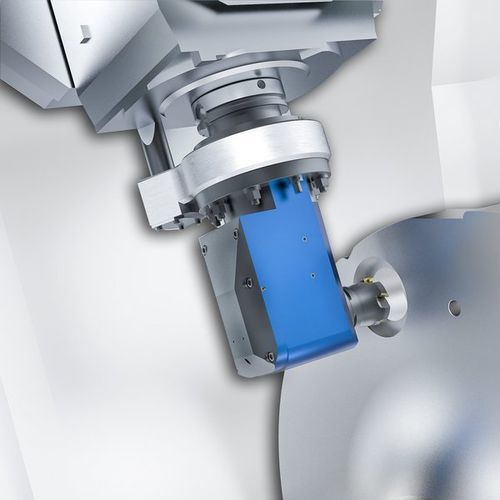

Angled tool heads and high-speed tools can be stored in the tool magazine and changed automatically. Large and heavy angled tool heads can be clamped in the prismatic tool accommodation to ensure cutting stability and precise machining results.

CNC facing head
Using CNC facing heads (D’Andrea) or special boring bars requires an additional NC-axis. WFL offers a U-axis as an option to provide the necessary kinematic input. Tool admission is carried out via the prismatic tool interface, enabling secure clamping and automatic handling from the pick-up magazine.

Characteristics / Technical specifications

• Compatibility with tool magazine storage for angled tool heads and high-speed tools
• Automatic tool change capability from the tool magazine
• Prismatic tool accommodation for clamping especially large and heavy angled tool heads
• Additional NC-axis required for CNC facing heads (D’Andrea) and special boring bars
• U-axis available as an option from WFL
• Tool admission via prismatic tool interface to ensure enhanced stability
• Automatic tool exchange through a pick-up magazine
