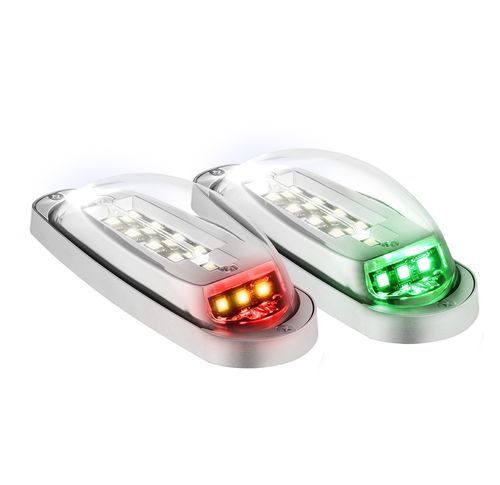

Position light MICROBURST™ PLUS

anti-collisionfor aircraftLED

Product overview

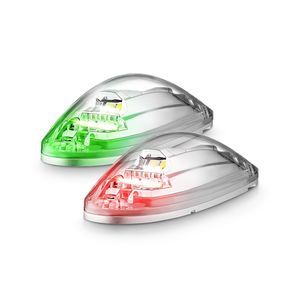

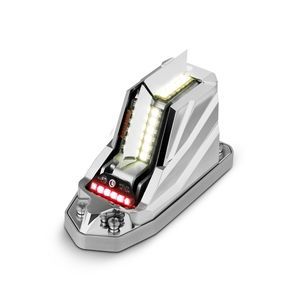

The Microburst™ PLUS series provides LED position and anti-collision lighting intended for experimental and Light Sport Aircraft (LSA). Available in Standard (Chrome) and Stealth (Black) finishes, the assemblies feature advanced optics, compact aerodynamic housings, and replaceable lenses. They operate on 14 VDC and offer synchronizable operation without an external power supply.

Key features

• LED position and anti-collision lighting
• Standard (Chrome) and Stealth (Black) finish options
• Advanced optics for high light output
• Compact, lightweight aerodynamic design
• Vibration- and moisture-resistant construction
• Operates on 14 VDC; no external power supply required
• Low current draw with long-life LEDs
• Synchronizable operation
• Replaceable lenses
• Optional CometFlash® technology

Experimental use notice
The Microburst™ PLUS series is intended for experimental and Light Sport Aircraft (LSA) applications only. These products are not FAA certified for installation on type-certificated aircraft and are not recommended for night operations on certified aircraft.

Parts / variants

• 01-0471507-00
• 01-0471519-01
• 1-0471519-00
• 01-0771490-00
• 01-0771507-03
• 01-0771507-04
• 01-0771519-03
• 01-0771519-04
• 01-0771490-01

Technical specifications

• Operating voltage: 14 VDC
• Design: Position and anti-collision LED assemblies
• Configurations: Standard (Chrome), Stealth (Black)
• Environmental: Vibration and moisture resistant
• Power: No external power supply required
• Synchronization: Supports synchronizable operation
• Lenses: Replaceable
• Technology option: CometFlash® available
• Applications: Experimental and Light Sport Aircraft (LSA) only (not FAA certified)
• Dimensions (selected): MB2/MB3: L: 4.61" W: 1.64" H: 1.41"; MB1: L: 2.32" W: 1.71" H: 2.16"
• Weight (selected): MB2: 0.21 lbs; MB3: 0.21 lbs; MB1: 0.15 lbs
• Current draw (selected): MB2 — Position ~0.20 A; Anti-Collision ~0.2 A (average) / 1.20 A (peak); MB3 — Position ~0.25 A; Anti-Collision ~0.2 A (average) / 1.20 A (peak); MB1 — Position ~0.20 A; Anti-Collision ~0.15 A (average) / 0.80 A (peak)
