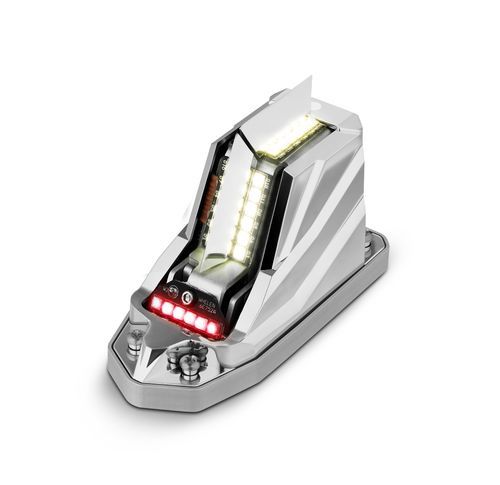

Position light ORION™ 650E

anti-collisionrecognitionfor aircraft

Product Overview The Orion™ 650E Series from Whelen Aerospace Technologies integrates RED or GREEN forward position lights with a white flashing anti-collision function in a single, compact flush‑mount wingtip assembly. The series eliminates the need for external flasher boxes (simplifying installation and improving reliability), installs behind an existing wingtip lens using the same footprint and mounting configuration as legacy Whelen products, and is available in both 14 VDC and 28 VDC configurations. Selected 28 VDC models (650E 31 and 650E 32) include an integrated red ground recognition light for enhanced ground visibility. The Orion™ 650E Series is fully FAA TSO approved and STC certified and is designed for retrofit and replacement applications.

Available Part Numbers / Variants

• 01-0790701-01 — 14V Green (OR6501GE)
• 01-0790701-02 — 14V Red (OR6501RE)
• 01-0790701-11 — 28V Green (OR6502GE)
• 01-0790701-12 — 28V Red (OR6502RE)
• 01-0790701-31 — 28V Green with Red Ground Recognition (OR650EG2G)
• 01-0790701-32 — 28V Red with Red Ground Recognition (OR650EG2R)

Key Features

• Integrated forward position (red or green) and white flashing anti-collision light in one unit
• Optional integrated red ground recognition light on select 28 VDC models
• Flush mount design for installation behind an existing wingtip lens; same footprint as legacy Whelen products
• Eliminates external flasher boxes
• Available 14 VDC and 28 VDC models
• FAA TSO approved and STC certified

Model / Part / Description / Approvals Model | Part # | Description | Approvals
OR6501GE | 01-0790701-01 | Embedded Green Position Light / Anti-Collision Wingtip Assembly, 14 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types II
OR6501RE | 01-0790701-02 | Embedded Red Position Light / Anti-Collision Wingtip Assembly, 14 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types I
OR6502GE | 01-0790701-11 | Embedded Green Position Light / Anti-Collision Wingtip Assembly, 28 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types II
OR6502RE | 01-0790701-12 | Embedded Red Position Light / Anti-Collision Wingtip Assembly, 28 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types I
OR650EG2G | 01-0790701-31 | Embedded Green Position Light / Red Ground Recognition / Anti-Collision Wingtip Assembly, 28 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types II
OR650EG2R | 01-0790701-32 | Embedded Red Position Light / Red Ground Recognition / Anti-Collision Wingtip Assembly, 28 VDC | STC / TSO / ETSO-C96a Class II, TSO/ETSO-C30c Types I

Documentation & Installation Notes Installation and service manuals, STC and certification documents are available for the Orion™ 650E series (installation guides, STC certificates, illustrated spare parts guide, and anti-collision light systems installation/service manual). This unit is designed to be installed under a wingtip lens and not to be mounted externally on the aircraft.

Technical Specifications

• Drawing: 90701
• Dimensions: L 3.85" × W 1.68" × H 2.20"
• Weight: 0.26 lbs
• Current draw (14 VDC): Position light 0.30 A; Anti-collision light ~0.70 A (average); Peak 3.6 A
• Current draw (28 VDC): Position light 0.15 A; Anti-collision light ~0.35 A (average); Peak 1.8 A
• Mounting: Flush (installed behind an existing wingtip lens; uses legacy Whelen footprint)
• Approvals: FAA TSO, STC certified; ETSO/TSO references as detailed in product documentation
• Available configurations: 14 VDC and 28 VDC; selected 28 VDC models include red ground recognition light
