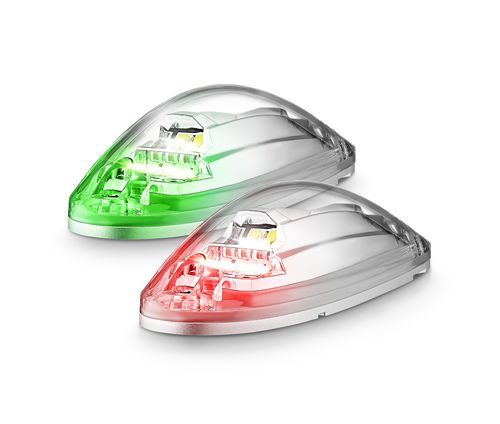

Position light BLAZE™

anti-collisionfor aircraftLED

Overview
The Whelen BLAZE™ Series is an all-LED wingtip lighting system engineered for experimental and Light Sport Aircraft (LSA). Offered in Standard and Stealth finishes, the BLAZE™ integrates position, anti-collision and tail position lighting into a single compact assembly that enhances aircraft visibility while maintaining clean aerodynamic lines. The Stealth finish provides a durable black appearance to complement darker paint schemes.

Performance & Features
Designed for reliable operation on 14 VDC, the BLAZE™ Series features advanced LED optics, low current draw, lightweight construction, and resistance to vibration and moisture. Clear hard-coated polycarbonate lenses, synchronizable operation, and CometFlash® technology deliver high daytime visibility. Long-life LEDs and an aerodynamic form factor make the BLAZE™ suitable for builders seeking a compact, efficient wingtip solution.

Experimental Use Notice
The BLAZE™ Series is intended for experimental and Light Sport Aircraft (LSA) applications only. These products are not FAA approved or certified for installation on certified aircraft and are not recommended for night flight operations.

Documents

• Install Guide: BLAZE Series (Installation Guide PDF)
• Blaze Marketing Slick (product slick / marketing PDF/Image)

Video

• Product video available (YouTube embed)

Technical specifications

• Operating voltage: 14 VDC
• Dimensions: L: 4.547" x W: 1.336" x H: 1.122"
• Weight: 0.17 lbs
• Current draw (14 VDC): Position Light: 0.40 Amps (approx.); Anti-Collision Light: 2.15 Amps (Peak)
• Features: integrated position, anti-collision and tail position lights; synchronizable operation; CometFlash® technology; clear hard coated polycarbonate lens; low current draw; lightweight; vibration and moisture resistant; long-life LEDs
• Finish options: Standard (chrome/standard finish) and Stealth (durable black finish)
• Intended use: Experimental and Light Sport Aircraft (LSA) only — not FAA approved for certified aircraft; not recommended for night flight operations
• Available models / part numbers (summarized):
  BLAZE1RG — 01-95001-03 — Red & Green Pair — Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
  STBLZG — 01-0772285-S5 — Green — Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC, Stealth (Black)
  STBLZR — 01-0772285-S6 — Red — Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC, Stealth (Black)
