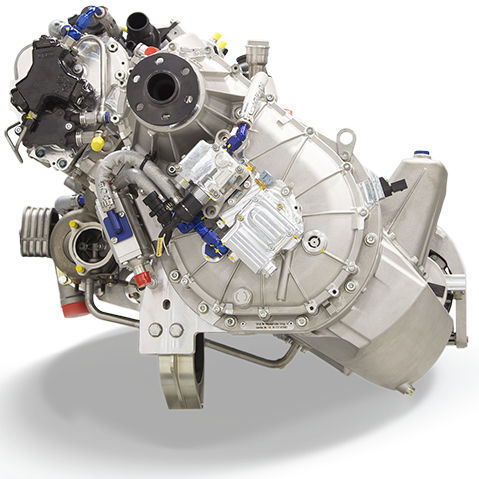

100 - 300hp piston engine CD-155

50 - 100hp100 - 300kgfor general aviation

The Continental® CD-155 jet fuel piston engine for General Aviation generates a take-off power of 114 kW (155 HP) at 2300 RPM. The CD-155 is a turbocharged, 4-cylinder in-line engine which is EASA and FAA certified. The CD-155 runs on both jet fuel and diesel (DIN EN590), and accepts any combination of the two. The engine has a time between replacement (TBR) of up to 2,100 hours or 12 years. Despite the improved performance, the CD-155 weighs as much as the CD-135. 4-cylinder, in-line diesel cycle engine, DOHC, 4 valves per cylinder, common rail direct injection, system turbo charged, liquid cooled, FADEC, wet sump oil system and reduction gear engine. Engine Work Principle Turbo Diesel Engine Cylinder, Configuration 4, In-Line Valve Gear DOHC Intake System Common Rail Direct Injection Cooling Liquid Cooled Oil System Wet Sump Electrical System Full Authority Digital Engine Control (FADEC) Prop Drive Reduction Gearbox With Integrated Clutch (ratio i = 1:1,69) Approved Propeller 3-blade Propeller of MT with Hydraulic Variable Pitch (MTV-6 series) Displacement 1991 cm³121.5 in³ Bore 83 mm3.27 in Stroke 92 mm3.62 in
