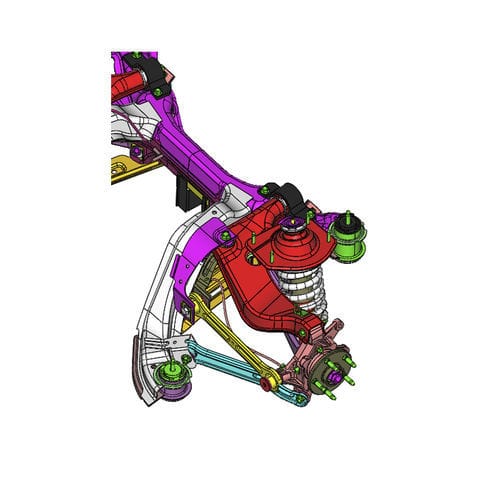

CAD software JT

interoperabilityfor aeronauticsNX

Getting certified by Daimler for JT data exchange is easy using 3D_Evolution©. The software is certified by Daimler for supplier data conversion and guarantees perfect JT interoperability with all current CAD systems. • JT PLMXML conversion for all formats and very large data • Reading and writing of JT files with XT B-REP • Reading and writing of JT files with Level of Details (LOD) • Healing technology • Recognition of planes, cylinder, cones for NX direct modelling • JT monolithic and external structure files • Reading and writing of PLMXML structure files • Reading and writing of STEP AP 242 structure files • STEP AP 242 kinematics interoperability • Reading and writing of semantic PMI • Reading and writing of attributes • Creation and check of moniker identifier for faces • JT Checker to verify Daimler criteria • GVP validation of JT files
