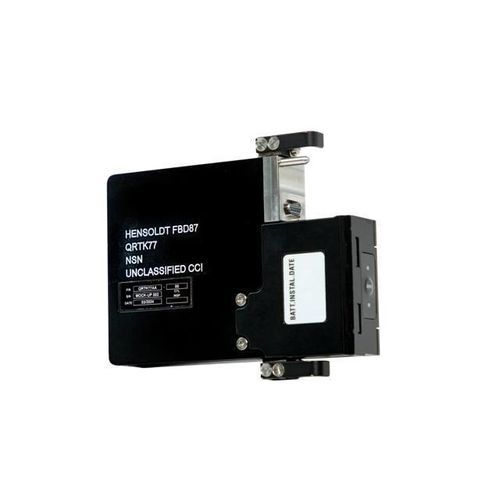

Aircraft airborne computer QRTK77

Summary
QRTK77 is a Mode 5 cryptographic computer dedicated to AIMS Option B format transponders, interrogators and CITs. It performs simultaneous cryptographic encryption and decryption for IFF operations and is suitable for IFF sub-systems of all platform types: combat aircraft, vessels, ground radar stations and air defence systems.

Key operational features

• Mode 5 cryptographic computer
• Performs simultaneous cryptographic encryption and decryption for IFF operations
• Compatible with AIMS Option B format transponders, interrogators and CITs
• Suitable for a wide range of hosts and platforms (air, sea, ground)

Security and usability
Equipped with its own battery, the QRTK77 manages up to 3 months of keys. The battery has no timer and can be replaced without time limitation, avoiding the risk of blocking the system during replacement. The QRTK77 incorporates a removable and external CIK (Crypto Ignition Key), making the system inoperable once removed and reinforcing security and ease of use in operational theatres.

Features

• IFF Mode 5
• Fully compatible with all types of keys
• External CIK (Crypto Ignition Key)
• Easy battery removal and replacement with no tamper state triggered
• Standby mode and fast wake up
• Compliant with DoD AIMS 04-900 option B
• Compliant with STANAG 4193 Ed. 3
• Electromagnetic compliance: MIL-STD-461C / 461E / 461G
• AIMS and SECAN certified

Benefits

• Compatible with AIMS Option B format transponders, interrogators and CITs
• Qualified for a large number of hosts
• Easy to install – plug and play
• Short lead time delivery
• ITAR free
• BAFA free

Product positioning
HENSOLDT positions the QRTK77 as a European provider solution with full end-to-end IFF Mode 5 capability, designed to simplify operations and maintenance while reinforcing sovereign supply options.

Technical specifications

• Model: QRTK77
• Function: Mode 5 cryptographic computer for IFF (encryption/decryption)
• Compatibility: AIMS Option B format transponders, interrogators and CITs
• Battery: Onboard battery managing up to 3 months of keys; removable and replaceable with no timer
• CIK: Removable and external Crypto Ignition Key (CIK)
• Installation: Plug and Play; qualified for many host platforms
• Standby: Stand by mode with fast wake up
• Standards compliance: DoD AIMS 04-900 option B; STANAG 4193 Ed. 3
• Electromagnetic: MIL-STD-461C / 461E / 461G
• Certifications: AIMS and SECAN
• Export/regulation status: ITAR free; BAFA free
