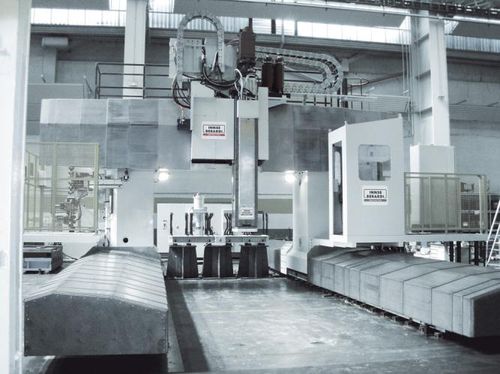

CNC milling machine Atlas Hydro
verticalfor aeronautics5-axis or more

CNC milling machine
CNC milling machine
CNC milling machine
CNC milling machine
CNC milling machine
CNC milling machine
CNC milling machine
Add to favorites
Compare this product


Characteristics

Type
CNC
Spindle orientation
vertical
Other characteristics
for aeronautics, 5-axis or more, 3-axis
Z travel

Min.: 1,500 mm
(59.06 in)

Max.: 4,000 mm
(157.48 in)

Power

Min.: 60 kW
(82 hp)

Max.: 110 kW
(150 hp)

Description

Their design ensures maximum machining accuracy and high productivity, with great stability during operations. As all Innse-Berardi machines, also the Atlas Hydro machines are designed, sized and created using the FEM (Finite Element Method). The flexible, modular design offers three different configurations: P Planomiller type - fixed portal G Gantry type - lower rails GU Gantry type - upper rails A complete range of advanced milling attachments provides the optimum solution for each user’s application requirements. Technical specifications: Distance between columns - mm 3,200 up to 10,000 RAM section - mm 550 x 550 - 630 x 630 - 680 x 680 Torque - Nm up to 9,000 Axis - 3+2 or 5 W-axis - fixed or moving crossrail Vertical turning tables Both, Atlas Vision as well as Atlas Hydro can be equipped optionally with Turning Tables for Turning, Boring, Milling, Turn-Milling and Grinding. The full range is featuring hydrostatic main bearings. A complete range of advanced attachments provides the optimum solution for the different application requirements. The modular design covers a broad range of different sizes: Max. turning diameter up to 9,000 mm Turning table diameter up to 8,000 mm Turning table load up to 400 ton Turning table speed up to 200 rpm Turning table power up to 200 kW
