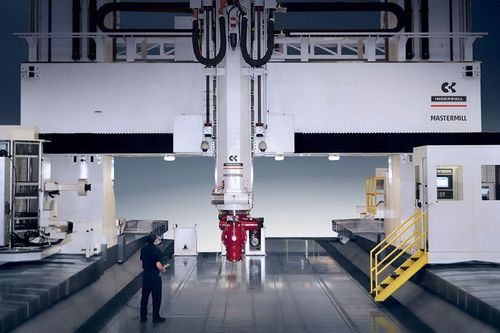

CNC milling machine MasterMill™
verticalfor aeronautics5-axis or more

CNC milling machine
CNC milling machine
CNC milling machine
Add to favorites
Compare this product


Characteristics

Type
CNC
Spindle orientation
vertical
Other characteristics
for aeronautics, 5-axis or more
Power

130 kW, 217 kW (177 hp)

Z travel

Min.: 1,500 mm (59 in)

Max.: 2,500 mm (98 in)

Description

Ingersoll MasterMill™ builds on the worldwide successes of several generations of Ingersoll gantry-type equipment. MasterMill™ incorporates the latest finite element analysis designs to optimize the highly rigid machine structure, and new technology features to maximize machine performance and safety: Digital drives for all axes Feedback by Heidenhain linear scales: resolution of .001 mm (.00004”) Operator Shielding. The use of the latest Siemens 840 D and Sinumerik One CNCs ensures maximum performance with complete compatibility of all drive and control components. Day-to-day machine operation has never been easier. Simple text screen inputs enable operators to reach high levels of operating proficiency. Sectors: Aerospace Defense Energy Technical specifications: X - Axis travel - 6,000 mm to 36,000 mm Y - Axis travel - 4,000 mm to 10,000 mm W - Axis Crossrail travel - 1,500 mm to 3,000 mm Attachment Heads - 14 Models
