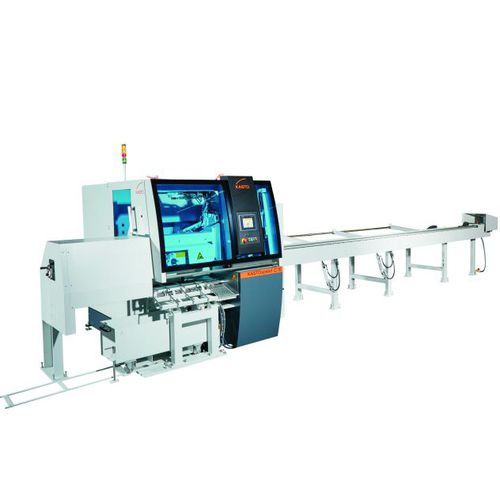

Metal cutting machine KASTOspeed C 15

discfor aeronautics

KASTOspeed C 15 KASTOspeed C 15 automatic circular saws fulfill the highest requirements in power and efficiency when cutting steel with tensile strengths up to approx. 1.400 N/mm (200,000 psi) also highalloyed steel using one-way carbide saw blades and HSS solid saw blades. Safe work piece infeed using well-proven inclined magazines Automatic separation and loading onto infeed roller conveyor Freely selectable trim cut, remnant recognition as well as automatic sorting of trim cuts and remnants. PLC control and operator panel Cutting range Form Cutting range thin-cut saw blade Ø carbide 360 20x20 - 100x80 mm / 20 - 80 mm / 20 - 100 mm Cutting range thin-cut saw blade Ø carbide 425 40x20 - 140x100 mm / 40 - 120 mm / 40 - 140 mm Cutting range thin-cut saw blade Ø carbide 460 40x20 - 155x135 mm / 40 - 135 mm / 40 - 153 mm Kerf width HM360= 2,6 mm Mass and height Length 1.700 mm Width 2.500 mm Height 2.050 mm Total weight 2.800 kg Material support height above floor 1.100 mm Performance characteristics connected load 25 kW Drive power saw blade 18,5 kW Drive power hydraulic pump 3,7/4,7 kW blade speed 20 - 180 m / min Saw blade feed rate, infinitely adjustable 50-2.000 mm/min Rapid return 10.000 mm/min Clamping force 20.000 N Min. remnant length approx. 70 mm For bar lengths 2.000 - 6.200 mm Bar feed infinitely adjustable 15 - 50 m/min Rapid return speed 120 m/min
