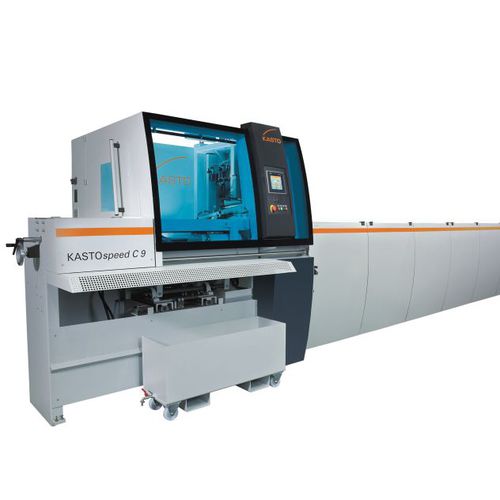

Metal cutting machine KASTOspeed C 9

discfor aeronautics

KASTOspeed C 9 Large-scale production in continuous operation is accomplished by the KASTOspeed C 9 when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 90 mm (3½”). Fast and precise cutting of large batches Safe work piece infeed using well-proven inclined magazines Automatic separation and loading onto infeed roller conveyor Freely selectable trim cut, remnant recognition as well as automatic sorting of trim cuts and remnants. PLC control and operator panel Cutting range Form Cutting range with blade diameter 250 mm 15 x 15 - 45 x 45 mm / 15 - 45 mm / 15 - 50 mm Cutting range with blade diameter 285 mm 50 x 10 - 65 x 65 mm / 15 - 65 mm / 45 - 70 mm Cutting range with blade diameter 315 mm 60 x 10 - 85 x 80 mm / 15 - 80 mm / 65 - 90 mm Mass and height Length 1.600 mm Width 1.950 mm Height 2.150 mm Total weight 2.300 kg Material support height above floor 1.100 mm Performance characteristics connected load 7,5 kW Drive power saw blade 2,6 / 3,2 kW Drive power hydraulic pump 16 - 225 m/min Saw blade feed rate, infinitely adjustable 50 - 2.000 mm/min Rapid return 8.500 mm/min Clamping force, infinitely adjustable 2.000 - 10.000 N Bar length 1.600 - 6.000 mm Storage depth 750 mm Max. single bar weight 300 kg Total load max. 2.000 kg Bar pusher carriage feed motion 15 - 50 m/min Rapid return speed 120 m/min
