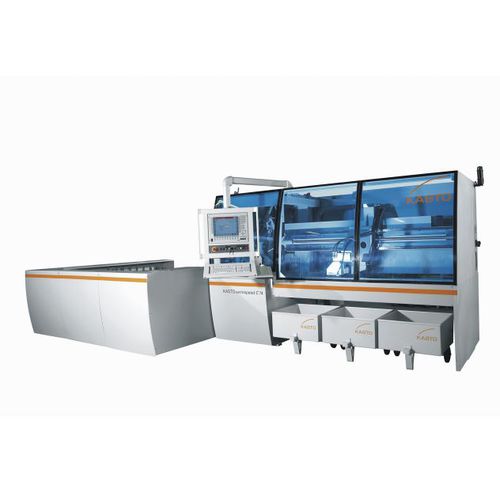

Metal cutting machine KASTOvariospeed C 15

discfor aeronauticsCNC

KASTOvariospeed C 15 CNC-controlled, fully-automatic Production Circular Saw in heavy duty design to cut solids, profiles and tubes from all material grades, including difficult to cut materials, with HSS and carbide blades. Suitable for the robotic handling system KASTOsort More information The basis for high cutting performances and long blade life of saw blades are the heavy machine base and high quality components. Precise cut-off pieces by means of optimum design and patented saw blade guide when the saw blade is entering and exiting the material. Pre-tensioned ball screw spindle for minimal ancillary time, automatic adaptation of feed stroke to the dimension of work piece and form, rapid return stroke. Tilting table for sorting the cut-off pieces. Sorting area within the cut-off length of 2.000 mm. Cutting range Form Cutting range thin-cut saw blade Ø carbide 360 10x10 - 130x90 mm / 10x10-90x90 mm / 10-105 mm Cutting range thin-cut saw blade Ø carbide 425 140x120 mm / 125x125 mm / 10-140 mm Cutting range thin-cut saw blade Ø carbide 460 155x120 mm / 135x135 mm / 30-152 mm Cutting range with blade Ø HSS 370 mm 10x10 - 130x90 mm / 10x10-90x90 mm / 10-105 mm Cutting range with blade Ø HSS 425 mm 140x120 mm / 125x125 mm / 10-140 mm Cutting range with blade Ø HSS 450 mm 155x120 mm / 135x135 mm / 30-152 mm Kerf width HM360,425,460 = 2,7 mm Mass and height Length 3.500 mm Width incl. chip conveyor and safety barrier approx. 3.900 mm Height 2.340 mm Height with air filter (option) 2.950 mm Total weight 4.000 kg Material support height 950 mm
