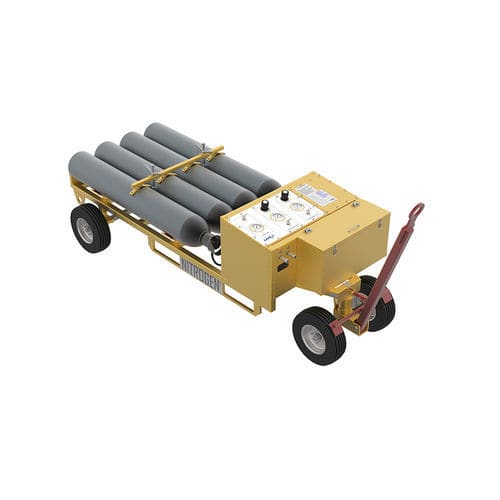

Nitrogen service cart 1900.03

Product description
Configured for four standard cylinders, the LANGA nitrogen and oxygen cart is designed for ground support tasks on narrow- and wide-body aircraft. It supports standard cylinders (ø230 mm, 50 L, 200 bar) and delivers both low- and high-pressure gas for tyre inflation, hydropneumatic pumps, strut and accumulator servicing. The welded steel tubular frame, pneumatic rubber wheels and low center of gravity ensure stable towing and manoeuvring; the tow bar doubles as a parking brake when upright. Controls and safety devices are positioned at waist height for ergonomic operation.

Standard features

• Skydrol-resistant paint finish.
• Operating instructions and warning labels on control panel.
• Control panel mounted on a reinforced steel plate.
• Maximum bottle length: 1650 mm.
• Reflectors for improved visibility during night operations.
• Tow bar with ø76 mm eyebolt; tow speeds up to 25 km/h.
• Four tie-down points for secure transport.
• Integrated toolbox on the trolley.
• High-pressure regulator output: 0–200 bar (2900 PSI).
• Low-pressure regulator output: 0–25 bar (363 PSI).
• Calibrated pressure gauges on inlet and outlet lines.
• Relief valves on each output line set at 105% of max allowed pressure.
• Stop needle valves on each output line to control gas flow.
• Outlet quick connectors on each line.
• Pipework and fittings in carbon steel with zinc plating for nitrogen services.
• High-pressure hose length: 5 m (for high and low pressure services).
• CE marked according to EN 12312.

Optionals

• Special paint colour.
• Wooden closed box.
• Nitrogen bottle (ø230 mm, 50 L, test pressure 300 bar / working pressure 200 bar) (P/N: 0059.51.9010).
• Self-retractable hose reel for nitrogen service (2 units for high and low pressure) (P/N: 1900.00.0950).
• Recharge system to refill the nitrogen bottles (P/N: 1900.00.0954).
• Nitrogen booster powered by nitrogen/compressed air (P/N: 1902.00.0000).
• Cover for control panel (P/N: 1900.01.0957).
• Auxiliary compressed air input for booster (P/N: 1902.00.0950).
• Tilting system for single-operator loading/unloading of gas bottles (P/N: 1900.13.0000).
• Adjustable bottle cradle for diameters ø300 to ø235 mm (P/N: 1900.03.0956).
• Solid rubber wheels (P/N: 1900.01.0955).
• Cover for toolbox (P/N: 1900.01.0954).

Technical specifications

• Cylinder capacity supported: configurable from 2 up to 6 standard cylinders (ø230 mm, 50 L, 200 bar).
• High-pressure regulator output: 0–200 bar (2900 PSI).
• Low-pressure regulator output: 0–25 bar (363 PSI).
• High-pressure hose length: 5 m (for high and low pressure services).
• Maximum bottle length: 1650 mm.
• Construction: welded steel tubular frame with carbon steel pipework and zinc-plated fittings.
• Wheels: pneumatic rubber wheels (solid rubber wheels available as option).
• Towing: tow bar with ø76 mm eyebolt; tow speeds up to 25 km/h; tow bar acts as parking brake when upright.
• Safety: calibrated gauges, relief valves set at 105% of max pressure, stop needle valves and outlet quick connectors.
• Control panel: waist-height mounted with instructions and warning labels on steel plate.
• Compliance: CE marked according to EN 12312.
