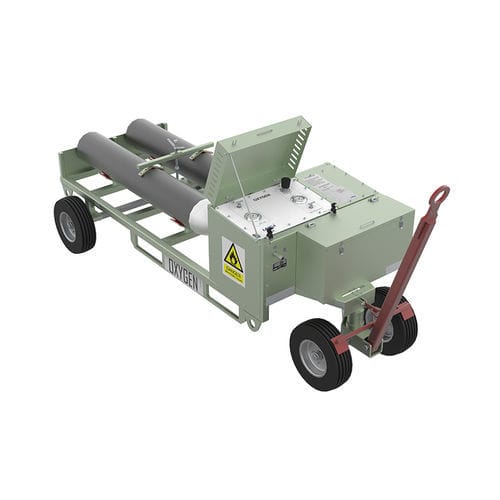

Oxygen service cart 1900.06

Overview
LANGA nitrogen and oxygen carts are designed to carry from two up to six standard cylinders (ø230 mm, 50 L, 200 bar). They offer an economical, easy-to-operate solution for narrow- and wide-body aircraft ground support, helping reduce maintenance turnaround time. The trolley can supply high-pressure oxygen for emergency breathing accumulator systems. Robust welded steel tubular frame, solid rubber wheels and a low centre of gravity ensure stability and safe handling. The tow bar doubles as a parking brake when stored upright. Control panel is mounted at waist height for easy access to all controls and devices.

Standard Features

• Skydrol-resistant paint finish.
• Operating instructions and warning labels on the control panel for immediate reference.
• Control panel mounted on a reinforced steel plate within a secure steel enclosure.
• Maximum cylinder length supported: 1650 mm.
• Reflectors for improved night visibility.
• Tow bar with ø76 mm eyebolt; acts as parking brake when upright.
• Four tie-down points for secure aircraft stowage.
• Integrated tool box on the trolley.
• High-pressure line regulator with adjustable output 0–200 bar (approx. 2900 PSI).
• Calibrated pressure gauges on inlet and outlet lines.
• Relief valves on each output line set at 105% of maximum allowed pressure.
• Stop needle valves on each output line to control gas flow.
• All oxygen-service pipework and fittings manufactured in stainless steel.
• High-pressure hose length: 5 m.
• CE marked according to EN 12312.

Optionals

• Special paint colour.
• Wooden closed box.
• Oxygen cylinder (ø230 mm, 50 L, test pressure 300 bar / working pressure 200 bar) (P/N: 0059.10.9010).
• Self-retractable hose reel for oxygen service (1 unit for high pressure) (P/N: 1900.00.0952).
• Recharge system to refill nitrogen bottles (P/N: 1900.00.0954) — available only with booster option.
• Recharge system to refill oxygen bottles (P/N: 1906.00.0954).
• Oxygen booster powered by nitrogen/compressed air (P/N: 1905.00.0000).
• Cover for control panel (P/N: 1900.01.0957).
• Auxiliary compressed air input for booster (P/N: 1902.00.0950).
• Tilting system for single-operator loading/unloading of gas bottles (P/N: 1900.16.0000).
• Bottle cradle adjustable for different diameters (ø300 to ø235 mm) (P/N: 1900.01.0956).
• Solid rubber wheels (optional replacement) (P/N: 1900.01.0955).
• Cover for tool box (P/N: 1900.01.0954).

Characteristics / Technical specifications

• Reference: 1900.06.
• Product type: Oxygen/nitrogen service cart designed for 2 to 6 standard cylinders.
• Cylinder compatibility: ø230 mm, 50 L, 200 bar working pressure.
• Maximum cylinder length supported: 1650 mm.
• High-pressure regulator output range: 0–200 bar (≈ 2900 PSI).
• High-pressure hose length: 5 m.
• Relief valves set at 105% of maximum allowed pressure on each output line.
• Stop needle valves on each output line for precise flow control.
• Calibrated pressure gauges on inlet and outlet lines.
• All oxygen-service pipework and fittings in stainless steel.
• Construction: welded steel tubular frame.
• Wheels: solid rubber (optional replacement available).
• Tow bar with ø76 mm eyebolt; acts as parking brake when upright.
• Designed for towing speeds up to 25 km/h.
• Low centre of gravity for increased stability and safe handling.
• Control panel mounted at waist height for operator ergonomics.
• Integrated tool box and four tie-down points.
• CE marked in accordance with EN 12312.
