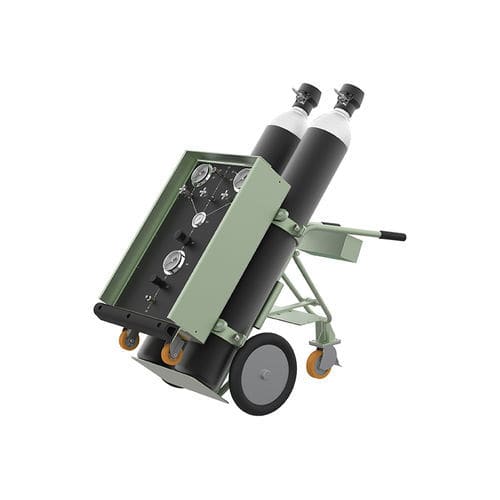

Oxygen service cart 1110.00

Product description
LANGA nitrogen and oxygen carts are designed to carry from two up to six standard cylinders (ø230 mm, 50 L, 200 bar). Intended for on-wing service of narrow- and wide-body aircraft, the trolley supplies high-pressure oxygen for emergency breathing accumulator systems and simplifies maintenance operations. Sturdy welded steel tubular construction with three solid rubber / super-elastic wheels ensures manoeuvrability in confined ramp areas. The ergonomic control panel provides clear visual information and easy access to all controls and devices.

Standard features

• Skydrol resistant paint.
• Operating instructions and warning labels on the control panel.
• Control panel mounted in a reinforced steel plate and protected storage.
• Maximum bottle diameter: 235 mm.
• Integrated tool box on the trolley.
• High-pressure line regulator with output 0–200 bar (≈2900 PSI).
• Calibrated pressure gauges on inlet and outlet lines.
• Relief valves on each output line set at 105% of maximum allowed pressure.
• Stop needle valves fitted on each output line to control gas flow.
• All oxygen pipework and fittings manufactured in stainless steel.
• High-pressure hose length: 5 m.
• CE marked according to EN 12312.

Optional accessories

• Special paint colour.
• Wooden closed box.
• Oxygen bottle (ø230 mm, 50 L, test pressure 300 bar / working pressure 200 bar) (P/N: 0059.10.9010).
• Self-retractable hose reel for oxygen service (1 unit for high pressure) (P/N: 0059.01.0956).
• Recharge system to refill the oxygen bottles (P/N: 0059.01.0959).
• Oxygen booster powered by nitrogen/compressed air (P/N: 0059.10.0950).
• Auxiliary compressed air input for booster (P/N: 0059.01.0957).

Technical specifications

• Designed to carry from 2 up to 6 standard nitrogen/oxygen cylinders.
• Standard cylinder reference: ø230 mm, 50 L, working pressure 200 bar (optional bottle test pressure 300 bar).
• Maximum bottle diameter allowed: 235 mm.
• High-pressure regulator output: 0–200 bar (≈2900 PSI).
• Calibrated pressure gauges on inlet and outlet lines.
• Relief valves on each output line set at 105% of maximum allowed pressure.
• Stop needle valves on each output line to control gas flow.
• All oxygen pipework and fittings in stainless steel.
• High-pressure hose length: 5 m.
• Construction: welded steel tubular frame, steel storage plate for panel, integrated tool box.
• Mobility: three solid rubber / super-elastic wheels, torsional suspension bars on front and rear axles; pedestrian-moved trolley.
• Ergonomic control panel with visual indicators and easy access to controls.
• CE marked according to EN 12312.
