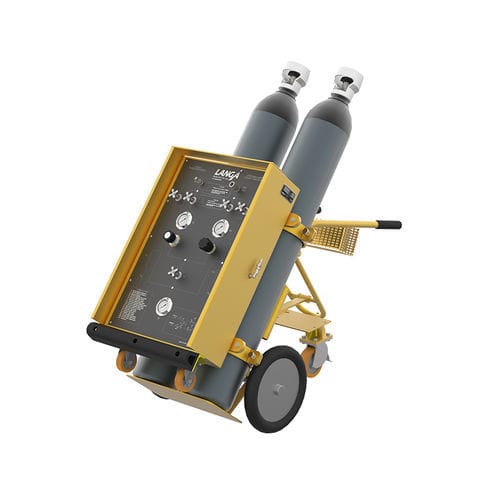

Nitrogen service cart 1340.00

Product overview
LANGA nitrogen and oxygen trolley for aircraft maintenance, configured for 2 standard cylinders (expandable to 6). Supplies low pressure for aircraft tire inflation and hydropneumatic pumps, and high pressure for strut and accumulator inflation. Pedestrian-operated trolley with sturdy welded steel tubular frame, three solid rubber wheels and superelastic wheels with torsional suspension for improved stability and maneuverability. Ergonomic control panel with clear visual indicators for fast service on narrow-body and wide-body aircraft.

Key features

• Skydrol-resistant paint.
• Operating instructions and warning labels located on the control panel.
• Control panel mounted on a reinforced steel plate.
• Maximum bottle diameter: 235 mm.
• Integrated tool box on the trolley.
• High-pressure regulator output: 0–200 bar (2900 PSI).
• Low-pressure regulator output: 0–25 bar (363 PSI).
• Calibrated pressure gauges on inlet and outlet lines.
• Relief valves on each output line set at 105% of maximum allowed pressure.
• Stop needle valves on each output line to control gas flow.
• Outlet quick connectors on each line.
• All pipework and fittings for nitrogen services manufactured in carbon steel with zinc plating.
• High-pressure hose length: 5 m for both high and low pressure services.
• CE marked according to EN 12312.

Optional equipment

• Special paint color.
• Wooden closed box.
• Nitrogen bottle (ø230 mm, 50 L, test pressure 300 bar, working pressure 200 bar) (P/N: 0059.51.9010).
• Self-retractable hose reel for nitrogen service (2 units for high and low pressure) (P/N: 0059.01.0955).
• Recharge system to refill the nitrogen bottles (P/N: 5210.00.1320.00).
• Nitrogen booster powered by nitrogen/compressed air (P/N: 5210.00.0951.00).
• Auxiliary compressed air input for booster (P/N: 5210.00.0951.20).

Technical specifications

• Designed capacity: 2–6 standard cylinders (standard cylinder: ø230 mm, 50 L, 200 bar working pressure).
• Maximum bottle diameter: 235 mm.
• High-pressure regulator output: 0–200 bar (2900 PSI).
• Low-pressure regulator output: 0–25 bar (363 PSI).
• High-pressure hose length: 5 m (for both high and low pressure services).
• Relief valves set at 105% of maximum allowed pressure on each output line.
• Calibrated pressure gauges on inlet and outlet lines.
• Stop needle valves and quick connectors on each output line.
• Construction: sturdy welded steel tubular frame; control panel mounted on a reinforced steel plate.
• Wheels & movement: three solid rubber wheels, superelastic wheels, torsional suspension bars on front and rear axle; pedestrian-moved trolley.
• Integrated tool box.
• Pipework and fittings: carbon steel with zinc plating.
• Paint: Skydrol-resistant.
• Certification: CE marked according to EN 12312.
