MRO access platform 0340.80

maintenancefoldingmovable

Description

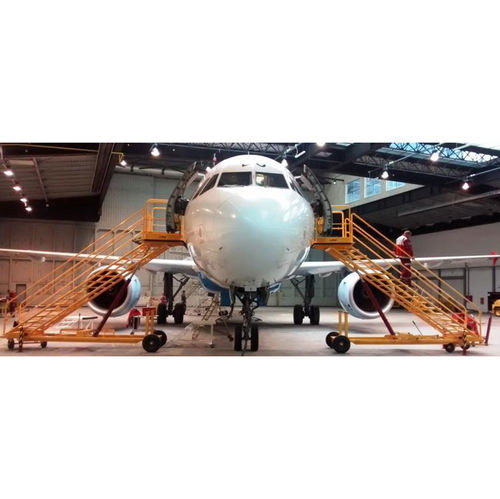

LANGA towable hydraulic maintenance and access stands are engineered for safe, efficient servicing of commercial aircraft. The variable-height configuration adapts to different maintenance tasks and aircraft types. Welded steel construction, hydraulic lift assisted by a hand pump and non-slip working surfaces are designed to operate reliably on aprons and aircraft parking areas under demanding conditions. Platforms are rated for ground movements with towing speeds up to 25 km/hour.

Standard Features

• Skydroll resistant paint (yellow standard); all unpainted parts galvanized
• Foldable and removable handrails with rubber top protection
• Foldable tow bar with slewing ring for steering
• Solid rubber front wheels and pneumatic rear wheels to improve high-speed towing stability
• Rubber bumpers on the front side of the platform
• Hydraulic cylinder assisted by hand pump with check valve to lock the platform in case of hydraulic failure
• Working platform and steps: anti-slip material with heavy-duty grating
• Mechanical stabilizers to lock the platform in position
• CE certificate according to EN 12312-8

Optionals

• Special paint color
• Rubber bumpers around the full platform perimeter
• Heavy-duty swivel castors with integral brakes for hangar movements
• Pneumatic-driven hydraulic pump

Technical specifications

• Model code: 0340.80
• Denomination: Maintenance Platform
• Brand: LANGA
• Construction: Welded steel
• Finish: Skydroll resistant paint (yellow standard); unpainted parts galvanized
• Mobility: Towable, foldable tow bar with slewing ring for steering
• Maximum towing speed (design): up to 25 Km/hour for movements on tarmac and aircraft parking areas
• Wheels: Solid rubber front wheels; pneumatic rear wheels
• Platform and steps: Non-slip material with heavy-duty grating
• Hydraulic system: Hydraulic cylinder assisted by hand pump with check valve to lock platform in case of hydraulic failure
• Stabilization: Mechanical stabilizers to lock platform position
• Handrails: Foldable and removable; rubber protection on top
• Bumpers: Rubber bumpers on front side (option for full perimeter)
• Certification: CE according to EN 12312-8
