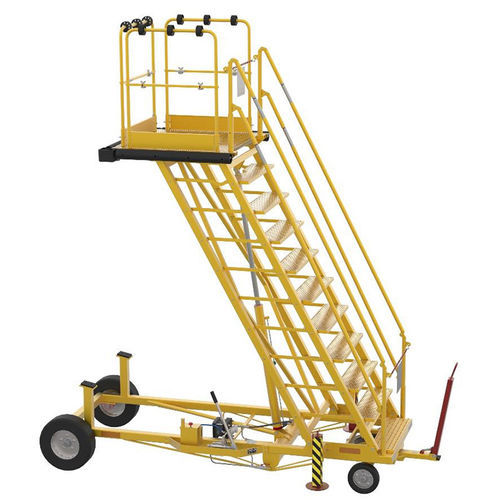

Maintenance access platform 0342.00

MROfoldingadjustable

Description
LANGA towable hydraulic maintenance and access stands are designed to meet aeronautical ground support requirements for commercial aircraft. The variable-height configuration adapts to specific maintenance tasks and customer needs. Welded steel construction, hydraulic operation and anti-slip steps/platforms comply with applicable European standards to ensure safe operation under demanding conditions. Platforms are suitable for movement on apron and parking areas with towing speeds up to 25 km/h.

Standard Features

• Skydroll resistant paint (yellow standard), with all unpainted parts galvanized
• Hand rails can be folded and removed
• Hand rails with rubber protection on the top
• Foldable tow bar and slewing ring for steering
• Solid rubber front wheels and pneumatic rear wheels for improved high-speed towing
• Rubber bumpers on the front side of the platform
• Hydraulic cylinder assisted by hand pump, with check valve on the cylinder to lock the platform in case of hydraulic failure
• Working platform and steps made of non-slip material with heavy duty grating
• Mechanical stabilizers to lock the platform in position
• CE certificate according to EN 12312-8

Optionals

• Special paint color
• Rubber bumpers around full platform perimeter
• Heavy duty swivel castors with integral brakes for internal hangar movements
• Pneumatic driven hydraulic pump

Technical specifications

• Brand: LANGA
• Model designation: MAINTENANCE PLATFORM
• Product code: 0342.00
• Construction: Welded steel
• Hydraulic system: Hydraulic cylinder assisted by hand pump with safety check valve
• Surface: Working platform and steps with non-slip heavy duty grating
• Wheels: Solid rubber front wheels; pneumatic rear wheels
• Tow capabilities: Designed for towing on tarmac and parking areas up to 25 km/h
• Safety: Mechanical stabilizers; rubber bumpers; foldable/removable hand rails with rubber protection
• Certification: CE certificate according to EN 12312-8
• Finish: Skydroll resistant paint (yellow standard); unpainted parts galvanized
• Optional features available: special paint colors; perimeter rubber bumpers; heavy duty swivel castors with brakes; pneumatic driven hydraulic pump
