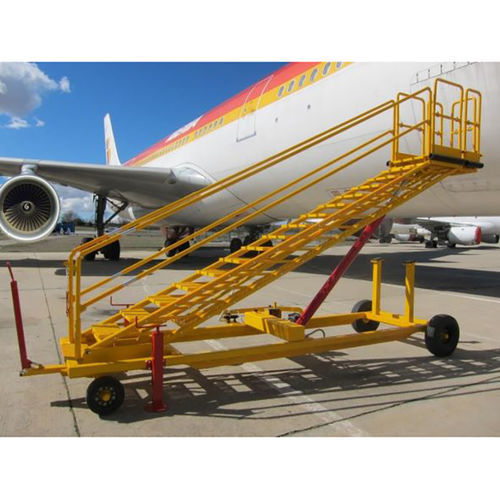

Maintenance access platform 0340.90

foldinggalvanised steel

Product description
LANGA INDUSTRIAL towable hydraulic maintenance and access stands are intended for maintenance operations on commercial aircraft. The variable-height configuration allows adaptation to specific maintenance tasks. Welded steel construction, hydraulic actuation and non-slip working surfaces conform to EN 12312-8 and are suited for apron and parking area use. Platforms are designed for towing movements with maximum speeds up to 25 km/h.

Standard Features

• Skydroll resistant paint (yellow standard); all unpainted parts galvanized
• Foldable and removable hand rails with rubber top protection
• Foldable tow bar and slewing ring for steering
• Solid rubber wheels on front axle; pneumatic wheels on rear for improved high-speed towing
• Rubber bumpers on front side of platform
• Hydraulic cylinder assisted by hand pump with check valve to lock platform in case of hydraulic failure
• Working platform and steps in non-slip material with heavy-duty grating
• Mechanical stabilizers to lock the platform in position
• CE certificate according to EN 12312-8

Optionals

• Special paint color
• Rubber bumpers around full platform perimeter
• Heavy-duty swivel castors with integral brakes for movements inside hangar
• Pneumatically driven hydraulic pump

Related Equipment

• Skydroll resistant paint (yellow standard); all unpainted parts galvanized
• Foldable and removable hand rails with rubber top protection
• Foldable tow bar and slewing ring for steering
• Solid rubber wheels on front axle; pneumatic wheels on rear
• Rubber bumpers on platform edges
• Hydraulic cylinder with hand-pump assistance and check valve
• Non-slip work surfaces with heavy-duty grating
• Mechanical stabilizers for position locking
• CE certificate according to EN 12312-8

Technical specifications

• Model: MAINTENANCE PLATFORM
• Reference: 0340.90
• Brand: LANGA INDUSTRIAL
• Certification: CE certificate according to EN 12312-8
• Maximum towing speed: up to 25 km/h
• Construction: welded steel
• Hydraulic system: hydraulic cylinder assisted by hand pump with check valve to lock platform in case of hydraulic failure
• Platform and steps: non-slip material with heavy-duty grating
• Wheels: solid rubber wheels on front axle; pneumatic wheels on rear
• Hand rails: foldable and removable with rubber protection on top
• Tow bar: foldable tow bar and slewing ring for steering
• Stabilizers: mechanical stabilizers to lock platform position
• Finish options: special paint color available; rubber bumpers around perimeter (optional)
• Intended use: maintenance and access for commercial aircraft; movement on apron and aircraft parking areas
