MRO access platform 2160.20

fuselagemaintenanceadjustable

Product description

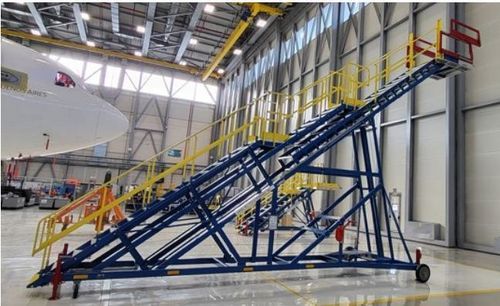

LANGA towable hydraulic maintenance stair platforms are designed to meet safety and regulatory requirements for maintenance tasks on commercial and military aircraft. The variable-height configuration adapts to different aircraft types and maintenance needs, with particular suitability for wide-body aircraft. Construction uses approximately 80% high-quality aluminum and 20% high-resistance steel. The modular step and working-platform design complies with relevant European standards and supports operation in airport ramp and parking areas.

Standard features

• Skydrol-resistant paint (yellow standard); unpainted parts zinc plated
• Anodized aluminum components
• Construction: ~80% aluminum, ~20% high-resistance steel
• Working platform and steps: non-slip material with heavy-duty grating
• Foldable front handrail
• 4 mechanical stabilizers
• Height-adjustable platform driven by hydraulic cylinder
• Non-marking rubber bumpers on aircraft contact side (front)
• Foldable towbar compliant with STANAG 4101
• Reflective markings included
• 2 heavy-duty swivel castors with brakes
• Modular design allowing partial disassembly to fit inside 40ft 1C transport containers
• CE certification: EN 12312-8, EN 1915-1, EN 1915-2, EN 14122-3
• Operating temperature: -25°C to +50°C
• Operating humidity: 10% to 90%
• Wind resistance in use configuration: up to 75 km/h
• Maximum towing speed for movement: up to 15 km/h; recommended towing speed in use: 4 km/h

Main features

• Foldable front handrail with protective rubber; working platform and retractable stair include fixed handrails. Front handrails removable to facilitate operations. Protective non-marking rubbers around the working platform protect aircraft fuselage; rubbers are interchangeable and Skydrol resistant
• Sliding towbar: retractable towbar stored within the platform structure for towing; design compliant with STANAG 4101
• Mechanical stabilizers: four independent mechanical stabilizers provide easy levelling using hand screws for operation on uneven surfaces

Technical specifications

• Product reference displayed on page: 2160.20
• Model composition: ~80% aluminum, ~20% high-resistance steel
• Height-adjustable platform powered by hydraulic cylinder
• Working platform and steps: non-slip material with heavy-duty grating
• Protective non-marking rubber bumpers on aircraft contact side (front), interchangeable and Skydrol resistant
• Foldable towbar compliant with STANAG 4101; towbar retracts into platform structure
• 4 independent mechanical stabilizers for levelling
• 2 heavy-duty swivel castors with brakes
• Modular design allowing partial disassembly to fit inside 40ft 1C transport containers
• Designed for movements on tarmac and aircraft parking areas; maximum towing speed for movement: up to 15 km/h; recommended towing speed in use: 4 km/h
• Operating temperature range: -25°C to +50°C
• Operating humidity range: 10% to 90%
• Wind resistance in use configuration: up to 75 km/h
• Certifications: CE certificate according to EN 12312-8, EN 1915-1, EN 1915-2, EN 14122-3
