Ceiling-mounted air conditioning HFG-O/D

Product overview

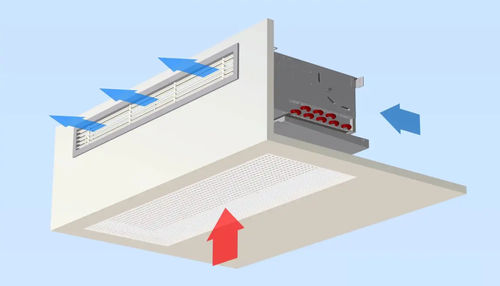

Ceiling-mounted induction unit for mixed-source ventilation. Provides energy-efficient cooling and heating for new buildings and renovations, suitable for complex installation and room situations.

Key features

• Comfort by mixed-source (primary + room) air delivery
• Cooling capacity up to 1,800 W
• Heating capacity up to 5,300 W
• Individual configuration of air volume and static pressure
• Multiple variants for special installation requirements
• Proven, robust design with maintenance access

Functions

• Cooling
• Heating
• Fresh air supply
• Optional special functions
• Optional dehumidification mode

Technical data (LpA = 35 dB(A))

• Max. cooling output: up to 1,800 W
• Max. heating output: up to 5,300 W
• Primary air volume flow: up to 150 m³/h
• Acoustic rating used for data: LpA = 35 dB(A) (at 6 dB room attenuation)

Dimensions
497–1,242 x 355/418 x 253 mm

Design / Options

• Variants available for particularly high cooling capacities

Characteristics / Technical specifications

• Model family: HFG-O/D
• Brand: LTG
• Functions: Cooling, Heating, Fresh air supply, optional special functions, optional dehumidification mode
• Max. cooling output: up to 1,800 W
• Max. heating output: up to 5,300 W
• Primary air volume flow: up to 150 m³/h
• Acoustic rating: LpA = 35 dB(A) (data condition: 6 dB room attenuation)
• Dimensions (L x W x H): 497–1,242 x 355/418 x 253 mm
• Options: variants for particularly high cooling capacities
