Ceiling-mounted air conditioning HFF
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling-mounted
- Cooling power
1,800 W
(6,141.85 BTU/h)- Heating power
4,000 W
(13,648.56 BTU/h)
Description
Overview

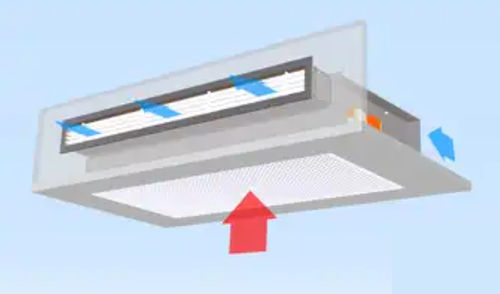

HFFsuite is a ceiling-mounted induction unit providing fanless ventilation, heating and cooling for constrained spaces. Designed for quiet operation (≤24 dB(A)) while delivering significant cooling and heating capacity, it is particularly suitable for hotel rooms and retrofit projects.
Key benefits
Functions
Technical Data (LpA = 35 dB(A))
Max. cooling output: up to 1800 W (conditions: 16°C cold water supply / 27°C intake / 16°C primary air)
Max. heating output: up to 4000 W (conditions: 70°C hot water flow / 20°C intake / 16°C primary air)
Primary air volume flow: value not specified
Dimensions
Length x Width x Height (mm): 942/1242 x 616 x 213
Design / Options
Application notes
Designed for quiet, efficient room climate control where space is limited; suitable as an economical renovation alternative to fan coil units and for use in hotel rooms, cabins and similar environments.
Technical specifications
HFFsuite is a ceiling-mounted induction unit providing fanless ventilation, heating and cooling for constrained spaces. Designed for quiet operation (≤24 dB(A)) while delivering significant cooling and heating capacity, it is particularly suitable for hotel rooms and retrofit projects.
Key benefits
- Whisper-quiet operation — sound level <24 dB(A)
- High cooling density in compact installations — condensate-free cooling possible
- Individual thermal comfort — induction control and adjustable air guide elements
- Low operating costs — energy-saving, maintenance-free induction principle
- Easy integration — compact ceiling installation and economical renovation alternative to fan coils
- Integrated control capability — complete control system solution available
Functions
- Cooling
- Heating
- Special function (optional)
- Dehumidification mode (optional)
- Induction control (optional)
Technical Data (LpA = 35 dB(A))
Max. cooling output: up to 1800 W (conditions: 16°C cold water supply / 27°C intake / 16°C primary air)
Max. heating output: up to 4000 W (conditions: 70°C hot water flow / 20°C intake / 16°C primary air)
Primary air volume flow: value not specified
Dimensions
Length x Width x Height (mm): 942/1242 x 616 x 213
Design / Options
- Electric heating coil
Application notes
Designed for quiet, efficient room climate control where space is limited; suitable as an economical renovation alternative to fan coil units and for use in hotel rooms, cabins and similar environments.
Technical specifications
- Model name: HFFsuite
- Sound level: <24 dB(A) (whisper-quiet)
- Max. cooling output: up to 1800 W (see conditions above)
- Max. heating output: up to 4000 W (see conditions above)
- Primary air: volume flow not specified
- Dimensions (L x W x H): 942/1242 x 616 x 213 mm
- Functions: Cooling, Heating, optional Special function, optional Dehumidification mode, optional Induction control
- Design/Options: Electric heating coil available
- Technology: Induction unit — energy-saving, maintenance-free induction principle
- Typical applications: Hotel rooms, shipping, cabins and other spaces requiring silent, compact climate control
