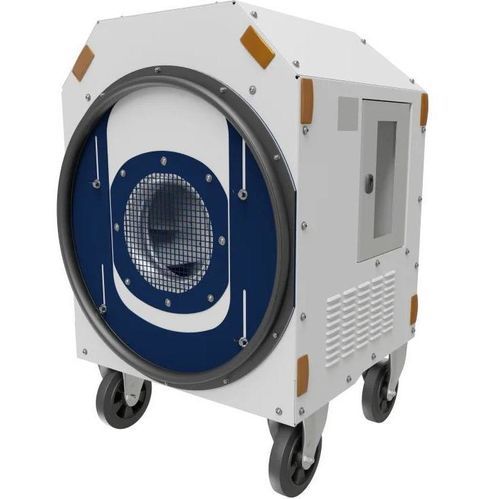

Ventilation fan BCS 355

for aircraftmobile

Overview
The BCS 355 aircraft brake cooling fan is designed for independent apron operation and provides rapid, targeted cooling of landing gear brake assemblies. The high-temperature direct-drive fan extracts hot air from the rim via a height-adjustable inlet; the airflow is discharged downwards for effective heat removal.

Suitable aircraft types

• AIRBUS A320
• AIRBUS A321
• AIRBUS A330
• AIRBUS A340
• AIRBUS A350
• AIRBUS A380
• Boeing B747
• Boeing B777
• Boeing B787
• Douglas DC-10
• McDonnell Douglas MD-11
• Lockheed L-1011

Advantages

• Autarkic operation: Independent apron use enabled by rechargeable battery and onboard power options.
• Rapid cooling: Guide value: brake discs cooled from >500 °C to <150 °C in approximately 20 minutes.
• Adaptability: Infinitely height-adjustable inlet to match different aircraft types.
• Operation and handling: Ergonomic push handle and height-adjustable seal for straightforward positioning and use.
• Weather protection and visibility: Powder-coated, weatherproof housing with reflectors for visible apron operation.
• Energy supply: 24 V onboard control voltage with selectable mains power options.

Design

• Connector plug: Country-specific version selectable.
• Control cabinet: Includes control cabinet fan and onboard charger with adaptive charge management; battery charge retention when connected to mains; 4 m connection spiral cable included.
• System control: Operating panel with key switch, ON/OFF switch, emergency stop and battery charge level indicator.
• Operating hours counter: Counter with reset function to track operating time.
• Document box: Stainless steel document box with handle on operating side.
• Cable and insert compartment: Storage space and provision for optional 2 kg ABC dry chemical fire extinguisher.
• Machine design: In accordance with IEC/EU regulations; high-temperature fan with direct drive; height-adjustable inlet; downward airflow discharge.

Technical data

• Type: BCS 355
• Dimensions (HxLxW): approx. 1170 x 830 x 770 mm
• Axle height: 530 - 650 mm (height-adjustable inlet)
• Weight: 190 kg
• Operating / control voltage: 24 V
• Power supply options: 230 V (200–250) 50–60 Hz and 120 V (100–130) 50–60 Hz
• Operating time: 4* (assessment value; see note)
• Cooling performance (guide): From >500 °C to <150 °C in approx. 20 min
• Fan: High-temperature design with direct drive; airflow discharged downwards
• Onboard features: Rechargeable battery, onboard charger with adaptive charge management, battery charge retention when connected to mains
• Housing: Weatherproof, powder-coated with reflectors
• Standards: Machine design according to IEC/EU regulations

Technical specifications

• Model: BCS 355
• Dimensions (HxLxW): approx. 1170 x 830 x 770 mm
• Axle height: 530 - 650 mm (height-adjustable inlet)
• Weight: 190 kg
• Operating / control voltage: 24 V
• Power supply options: 230 V (200–250) 50–60 Hz; 120 V (100–130) 50–60 Hz
• Operating time (assessment value): 4*
• Cooling performance (guide): brake disks cooled from >500 °C to <150 °C in approx. 20 min
• Fan: high-temperature direct-drive; downward discharge
• Onboard features: rechargeable battery, adaptive onboard charger, battery retention when connected to mains
• Housing: powder-coated, weatherproof, with reflectors
• Standards: IEC/EU compliant design
• Note: The operating time is provided as an assessment value and is not a guaranteed property.
