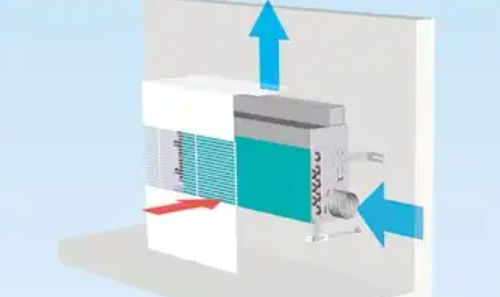

Ceiling-mounted air conditioning HFG

Overview
The induction device for all situations – for new builds and renovations alike. Convenient air conditioning even for complex installation and room situations. Energy-efficient cooling and heating.

Key features

• High level of comfort thanks to LTG mixed-source ventilation
• Numerous variants also suitable for special requirements such as narrow or low balustrades
• High heating/cooling capacity
• Low maintenance, proven and robust
• Air volume and pressure individually selectable

Functions

• Cooling
• Heating
• Fresh air supply
• Special function (optional)
• Dehumidification mode possible (optional)

Technical Data (LpA = 35 dB(A))

• Max. Cooling Output: up to 1800 W
• Max. Heating Output: up to 5300 W
• Primary air volume flow: up to 150 m³/h

Dimensions (Length x Width x Height in mm)
623-1318 x 187/149 x 350-435

Design / Options

• For particularly high cooling capacities
• For very narrow parapets

Available downloads (selection)

• Induction unit HFG operating instructions (PDF)
• Technical brochure sill mounted induction units (PDF)
• Installation instructions induction units HFG (PDF)

Characteristics / Technical specifications

• Brand: LTG
• Model / Series: HFG
• Functions: Cooling, Heating, Fresh air supply, optional special functions, optional dehumidification mode
• Max cooling output: up to 1800 W
• Max heating output: up to 5300 W
• Primary air volume flow: up to 150 m³/h
• Dimensions (L x W x H, mm): 623-1318 x 187/149 x 350-435
• Design/options: high cooling capacity variants, versions for very narrow parapets
