Air diffuser LDU

Product overview
From the office to the living room – the highly inductive LDU linear floor diffusers ventilate, heat and cool rooms comfortably and draught-free.

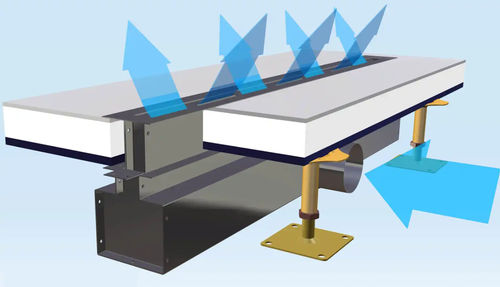

Type LDU 30/.../S: Slot diffuser with lateral connection spigot
Type LDU 30/.../U: Slot diffuser with air connection from below
Type LDU 30/.../-: Slot diffuser without separate air connection for pressurized floors

Key features

• Highly effective ventilation – quiet and draught-free
• Energy-saving – glass façades are thermally shielded
• Uniform appearance for seamless integration
• Simple fixing in raised and cavity floors
• Easy to maintain and clean thanks to removable dirt trap and air distribution plates

Technical data (selection)
LpA = 35 dB(A)
Airflow (examples): BG 800 - 75, 120 | BG 1000 - 80, 140; also values BG 800 - 85 | BG 1000 - 100 for some variants
Number of slot rows: 1 or 2
Integrated silencer: Standard (for relevant versions)
Air connection incl. throttle: Standard (for relevant versions)
Feet: height-adjustable for certain variants

Characteristics / Technical specifications

• Series: LDU
• Slot width: 30 mm
• Variants: LDU 30/.../S (lateral connection), LDU 30/.../U (air connection from below), LDU 30/.../- (for pressurised floors)
• Number of slot rows: 1 or 2
• Airflow ranges (examples): BG 800 and BG 1000 configurations with multiple flow values (see technical data)
• Integrated silencer: standard in applicable variants
• Air connection with throttle: standard in applicable variants
• Connection options: lateral connection piece available
• Feet: height-adjustable on specific versions
• Available in standard lengths (e.g. 800 mm, 1000 mm) and with various connection diameters (e.g. 79 mm, 99 mm)
• Files and drawings (DWG) and PDF product brochures available for detailed dimensions and specification
