Air diffuser LDB 12 Clean

Product overview

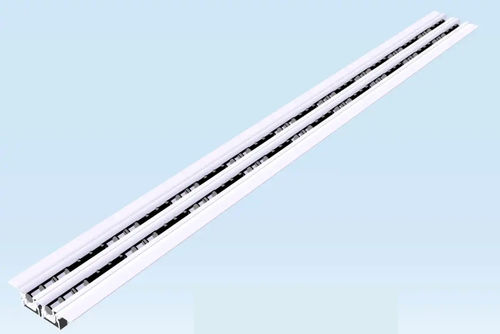

Slot diffuser designed for high occupant comfort and accurate airflow distribution. Adjustable for constant or variable volume flow; outlet elements allow regulation from 100…20% of nominal flow without additional mechanics. Discharge direction is adjustable by 180°, factory-set with reproducible positioning; subsequent in-situ adjustment and nearly closed settings are possible.

Key features

• 12 mm roller-shaped outlet elements for high induction
• Adjustable for high comfort applications
• From flat ceiling beam diffusion to wide beam fanning with 18 beams per meter row
• LTG System clean: additional gap in edge profile to reduce soiling near the diffuser

Technical data (high-level)

• Slot rows: 1–4
• Recommended air volumes (examples): 1-slot 70 m³/h at 27 dB(A); 2-slot 130 m³/h at 27 dB(A); 3-slot 190 m³/h at 31 dB(A); 4-slot 250 m³/h at 30 dB(A)
• Length (max): up to 2000 mm
• Profile width: 31–160 mm

Design / options

• Adjustable outlet elements
• Connection box with integrated throttling element
• Integrated silencer (optional)

Selection of possible edge profiles

• Type 5
• Type 0
• Type 8
• Type 1
• Type 4
• Type 2

Air diffusion
Roller-shaped outlet elements with an air-optimized inner contour produce high induction, quickly reduce outlet velocity and minimise temperature differences in the occupied zone.

Technical specifications

• Model name: LDB 12 Clean
• Roller diameter: 12 mm
• Slot rows: 1–4
• Recommended air volumes: 1-slot 70 m³/h (27 dB(A)); 2-slot 130 m³/h (27 dB(A)); 3-slot 190 m³/h (31 dB(A)); 4-slot 250 m³/h (30 dB(A))
• Maximum length: up to 2000 mm
• Profile width range: 31–160 mm
• Outlet adjustment: adjustable for 100…20% of nominal flow without extra mechanics; discharge direction adjustable by 180°
• Options: connection box with integrated throttling element; integrated silencer (optional)
• System Clean: additional gap in edge profile to reduce soiling near the diffuser
