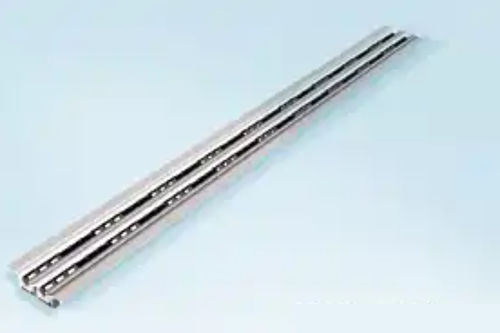

Air diffuser LDB 12style

Overview
The slot diffuser LDB 12style (LTG System clean) supplies rooms with fresh air by generating highly inductive individual jets for rapid mixing of supply and room air. The diffuser is made entirely of metal for improved fire protection, vandalism resistance and sustainability. Its narrow profile suits high architectural demands and is suitable for rail vehicles and integration into system ceilings.

Key benefits

• Comfortable and quiet: Rapid mixing of supply and room air through highly inductive single jets; even, low-noise air distribution enabled by flow-optimized inner contours of the diffuser elements.
• Flexible: Individually configurable airflow adapted to application and demand ventilation.
• Full metal construction: Enhanced safety regarding fire protection and vandalism, and improved durability.
• System clean: Designed to prevent ceiling soiling near the diffuser.
• Architectural: Narrow, unobtrusive design for integration in visible ceilings.

Technical data

• LpA = 35 dB(A) (example value; reference level indicated on the product page).
• Number of slot rows: 1–3.
• Recommended air volumes: 1-slot: 70 m³/h at 27 dB(A); 2-slot: 130 m³/h at 27 dB(A); 3-slot: 190 m³/h at 31 dB(A).
• Integrated silencer: optional.

Dimensions

• Maximum length: up to 2500 mm.
• Profile width: 41–129 mm.

Design / Options

• Connection box with integrated throttling element.
• Adjustable outlet elements.

Further information / edge profiles

• Possible edge profiles: Type 0, Type 8, Type 1.
• Air duct / airflow guidance available for this model.

Specifications

• Model family: LDB 12style (slot diffuser).
• Material: full metal construction.
• Acoustic rating example: LpA = 35 dB(A).
• Slot rows: 1–3 selectable.
• Recommended air volume (examples): 70 m³/h (1-slot, 27 dB(A)); 130 m³/h (2-slot, 27 dB(A)); 190 m³/h (3-slot, 31 dB(A)).
• Length: up to 2500 mm.
• Profile width range: 41–129 mm.
• Optional integrated silencer.
• Options: connection box with integrated throttling element, adjustable outlet elements.
