Air diffuser LDB 50 maxx

Overview

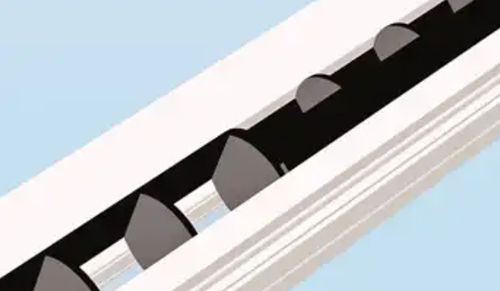

Slot diffuser LDB 50 maxx designed for particularly high ceilings and large air volumes. Adjustable for constant or variable volume flow with a range of 100–20% without additional mechanics. Blow-out direction adjustable by 180°, factory-preset and reproducible; adjustment possible after installation, including near-closed positions. Roller-shaped outlet elements (Ø50 mm) and an air-optimized inner contour provide high induction and rapid reduction of outlet velocity and temperature difference.

Key features

• Roller outlet diameter: 50 mm
• Up to 7 individual beams per metre row of slots (profiled beam distribution)
• Adjustable blow-out direction: 180°
• Volume flow adjustable: 100–20% without extra mechanics
• Designed for high rooms and large air volumes
• Optional integrated silencer and plenum solutions

Technical data (selected)

• Number of slot rows: 1–3
• Recommended air volume (examples, noise levels approximate): 1-slot — 310 m³/h @ 40 dB(A)
• Recommended air volume: 2-slot — 430 m³/h @ 38 dB(A)
• Recommended air volume: 3-slot — 510 m³/h @ 39 dB(A)
• Integrated silencer: optional

Dimensions

• Length: up to 2100 mm
• Profile width: 100 / 200 / 300 mm

Design / Options

• Plenum box with integrated throttle element (optional)
• Adjustable outlet elements
• Optional integrated silencer

Further information

• Possible edge profiles: Type 1
• Air duct and connections: product-family related

Technical specifications

• Model: LDB 50 maxx
• Roller-shaped outlet elements, roller diameter 50 mm
• Beam configuration: up to 7 individual beams per metre row of slots
• Adjustability: blow-out direction 180°; volume flow adjustable 100–20% without additional mechanics
• Noise performance examples: 1-slot 310 m³/h @ 40 dB(A); 2-slot 430 m³/h @ 38 dB(A); 3-slot 510 m³/h @ 39 dB(A)
• Dimensions: length up to 2100 mm; profile widths 100 / 200 / 300 mm
• Options: plenum box with throttle element (optional), adjustable outlet elements, optional integrated silencer
• Application: for high ceiling heights and large air volumes; high induction and rapid reduction of outlet velocity and temperature difference
