Drone drone sensor HT10RW

infrared

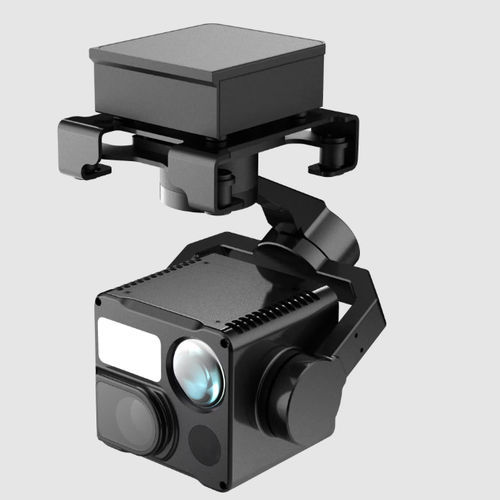

The MMC HT10RW is a compact, lightweight 3-axis stabilized multisensor payload (380 g) designed for industrial drone inspections and continuous 24/7 operations. It integrates high-resolution visible imaging, long-range optical zoom, thermal sensing and a laser rangefinder into a single unit for powerline, pipeline, solar farm and emergency response missions.

Main capabilities

• All-in-one multi-sensor integration: telephoto and wide-angle visible sensors, thermal camera and laser rangefinder in a compact enclosure.
• High-resolution visible imaging: 48 MP sensors supporting up to 6K photos (8000×6000) and 4K @ 30 fps video for detailed photographic and video evidence.
• Superior zoom: 11x optical zoom with up to 160x hybrid zoom for long-range observation and close-up inspection from a safe distance.
• Thermal imaging: 640×512 thermal sensor with 13 mm lens, day/night capability and electronic fog penetration to detect hotspots and temperature anomalies in adverse conditions.
• Laser rangefinder: up to 1200 m range to obtain precise distance and coordinate data for targeted maintenance or rescue operations.
• Lightweight & stabilized: total mass 380 g including 3-axis gimbal to minimize drone payload impact and ensure stable imaging.
• Broad compatibility: designed to integrate with multiple industrial drone platforms (examples: LOONG 2C / S / 2 / 2P) to extend fleet capabilities without heavy retrofit.

Applications & scenario highlights

• Power & utility inspection: detect micro-cracks and hotspots on transformers and insulators using combined visible and thermal imaging, and locate faults precisely with the laser rangefinder.
• Oil & gas pipeline monitoring: wide-angle corridor sweeps and telephoto weld/valve inspection from distance; thermal detection for leaks and buried anomalies at night or in fog.
• Solar farm maintenance: high-resolution visible imaging to identify cracked or soiled panels and thermal mapping to locate malfunctioning inverters/diodes and quantify energy loss.
• Fire & emergency response: thermal imaging penetrates smoke to locate hotspots and victims; laser ranging assists in safe approach planning and coordinate reporting.

Specifications

• Model name: HT10RW
• Weight: 380 g (including 3-axis gimbal)
• Visible sensors: 48 MP (telephoto + wide-angle)
• Photo capability: up to 6K photos (8000×6000)
• Video capability: 4K @ 30 fps
• Optical zoom: 11x optical; hybrid zoom up to 160x
• Thermal sensor: 640 × 512 resolution, 13 mm lens
• Thermal measurement range: -20°C to +550°C
• Laser rangefinder: up to 1200 m
• Field of view (examples): wide-angle ~79° FOV, telephoto ~9° FOV
• Gimbal: 3-axis stabilization
• Special features: electronic fog penetration for thermal, day/night operation, multi-sensor data fusion (visual + thermal + distance)
• Intended use cases: powerline/substation inspection, pipeline & facility inspection, photovoltaic maintenance, fire rescue and other industrial inspection scenarios
