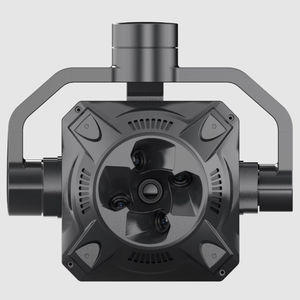

3-axis gimbal ZT60R

for dronesmonitoringwith camera

ZT60R is a 3-axis stabilized triple-sensor gimbal pod designed for professional long-range aerial surveillance, inspection and search & rescue operations. It combines a visible-light zoom camera, an infrared thermal imager and a laser rangefinder with on-board AI detection and auto-tracking to support continuous day/night missions and UAV integration.

Core capabilities:

• Triple-sensor suite: visible-light zoom, 640×512 infrared thermal imager and laser rangefinder for combined day/night and low-light situational awareness.
• Visible-light camera: 30× optical zoom with a 4.17 MP ultra-starlight sensor (1/1.8"), optimized for long-range identification and high-detail aerial zoom imaging.
• Thermal imaging: 640×512 thermal sensor (19 mm lens referenced) for night operations, smoke/fog penetration and hotspot detection.
• Laser rangefinder: product documentation reports both 1000 m and 1500 m ranges (1500 m listed with ±1 m accuracy); verify required range for your scenario.
• AI and tracking: on-board AI for vehicle and person detection plus auto-tracking to maintain target lock and reduce operator workload.
• Stabilization and image stability: precision 3-axis stabilization with very low jitter (±0.02°) to preserve sharp imagery at high zoom levels.
• Field integration: lightweight (~1.2 kg) design and operating temperature range −20°C to +60°C for UAV mounting and varied field conditions.

Primary applications:

• Public safety & law enforcement: night surveillance, perimeter security, suspect tracking and long-range identification.
• Energy & utilities inspection: powerline, substation and turbine inspection with hotspot detection.
• Fire & emergency response: thermal hotspot mapping, victim search in smoke and reduced-visibility conditions.
• Search & rescue: long-range visual and thermal search with AI-assisted detection and GPS/OSD coordinate overlay.

Additional notes from the product page:

• Imaging performance is emphasized for long-range inspection; example scenarios reference target detection at 1–2 km depending on conditions.
• Designed for UAV integration and to reduce manual workload via on-board AI and auto-tracking features; check interface compatibility with your platform.

Technical specifications:

• Model: ZT60R
• Sensor package: 30× optical zoom visible camera (4.17 MP, 1/1.8" ultra-starlight); 640×512 infrared thermal imager (19 mm lens referenced)
• Laser rangefinder: product page lists 1000 m in one section and 1500 m (±1 m) in another
• Stabilization: 3-axis precision gimbal; jitter ±0.02°
• AI features: vehicle/person detection and auto-tracking
• Weight: ~1.2 kg
• Operating temperature: −20°C to +60°C
• Typical use cases: public security, power inspection, fire rescue, long-range aerial zoom imaging, search & rescue
• Environmental/durability notes: lightweight design intended for field operation and UAV integration
