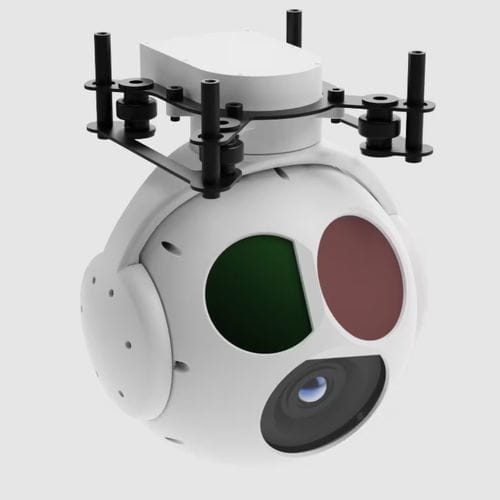

Video surveillance camera ZT30R_P

thermal imaginginfraredtracking

The ZT30R_P is a compact tri-spectral camera payload by MMC designed for VTOL UAVs, providing all-weather day/night surveillance and precision target localization for professional missions.

Key capabilities

• Multi-spectral sensing combining a high-zoom visible camera, thermal infrared sensor and integrated laser rangefinder for 24/7 operations.
• High-precision stabilization: dual-axis gyro-stabilized platform with conductive slip ring enabling 360° continuous rotation for stable imaging during dynamic flight.
• Intelligent target workflows: auto-capture, tracking, locking and GPS-tagging to accelerate target localization and mission execution.
• Optimized for seamless VTOL UAV integration with lightweight, compact form-factor for rapid payload mounting and operation.

Main applications

• Public safety & law enforcement: long-range observation, license plate/facial detail capture, coordinated surveillance.
• Industrial inspection: powerline, petrochemical and telecom infrastructure inspection with high-resolution visible and thermal imaging.
• Fire & emergency response: hotspot mapping, survivor detection through smoke, GPS-tagged imagery for rescue planning.
• Aerial mapping & surveying: wide-area overview to close-up detail switching, laser-range data to enrich 2D/3D models.
• Search & rescue: rapid detection and range-tagging of targets in low-visibility environments.

Technical specifications

• Model: ZT30R_P
• Manufacturer: MMC
• Visible camera: 30× optical zoom; high-resolution visible imaging (1080P)
• Infrared camera: 640 × 512 thermal sensor
• Infrared lens: 35 mm fixed-focus infrared lens
• Laser rangefinder: up to 3 km range; target coordinate pinning with ±1 m accuracy
• Stabilization: dual-axis gyro-stabilized platform; jitter ±0.01°; conductive slip ring supports continuous 360° rotation
• Intelligent functions: auto-capture, tracking, locking, GPS tagging of imagery
• Weight: 1.2 kg (suitable for VTOL integration)
• Dimensions: 140 × 152 × 188 mm
• Designed for: VTOL UAV platforms; applicable to public security, industrial inspection, fire rescue, aerial surveying and mapping
