vertical lathe / CNC / 3-axis / for aeronautics
ATF Series

{{requestButtons}}

Characteristics

  • Spindle orientation:

    vertical

  • Control type:

    CNC

  • Number of axes:

    3-axis

  • Other characteristics:

    for aeronautics

  • Diameter:

    Max.: 1,400 mm

    Min.: 1,000 mm

  • Spindle speed:

    Max.: 1,250 rpm (7,853.982 rad.min-1)

    Min.: 4.4 rpm (27.646 rad.min-1)

Description

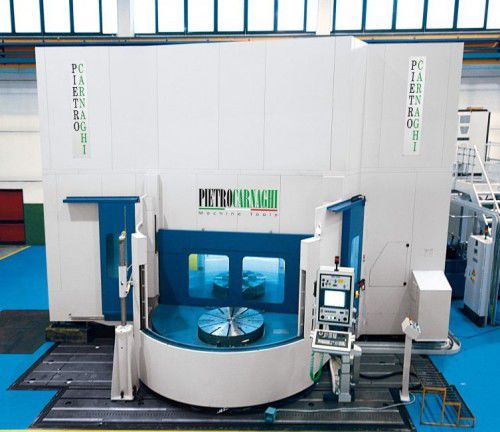

The turning and milling vertical lathe Pietro Carnaghi model ATF has been designed with a very compact termo-symmetrical structure with one single column assembled on the machine base.
ATF lathe can be equipped with a double pallet system, rotating 0 – 180°, useful to make a part centering on the external pallet, while with the internal pallet is in a machining process.
Compactness, rigidity, and extreme precision make the pallet ATF an ideal solution for machining of the most precise mechanical components.
