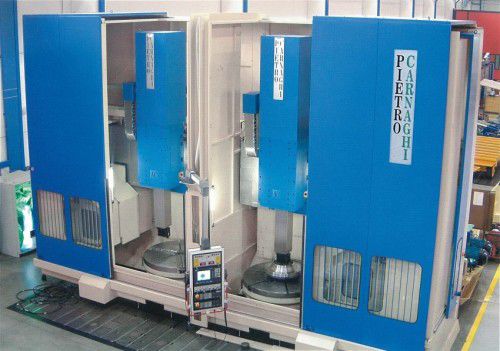

Vertical lathe ATT series
CNC3-axisfor aeronautics

vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
Add to favorites
Compare this product


Characteristics

Spindle orientation
vertical
Control type
CNC
Number of axes
3-axis
Other characteristics
for aeronautics
Spindle speed

Max.: 650 rpm
(4,084.07 rad.min-1)

Min.: 0.7 rpm
(4.398 rad.min-1)

Diameter

1,500 mm, 2,400 mm
(59.06 in, 94.49 in)

Description

The turning and milling vertical lathe Pietro Carnaghi model ATF has been designed with a very compact termo-symmetrical structure with one single column assembled on the machine base. ATF lathe can be equipped with a double pallet system, rotating 0 – 180°, useful to make a part centering on the external pallet, while with the internal pallet is in a machining process. Compactness, rigidity, and extreme precision make the pallet ATF an ideal solution for machining of the most precise mechanical components. Table - Pallet diameter - mm - 1250 / 1400 - 2000 / 2200 Max. allowable weight - t - 12 - 20 Turning power - kw - 60 - (100) Turning height - mm - 750 - (1000) - (1200) Ram section - mm - 250 x 250 Ram stroke Z axis - mm - 1000 - (1250) Milling power - kw - 37 Max. RPM - RPM - 3000 - (6000) Rapid feeds X-Z-axes - mm/min - 30000
